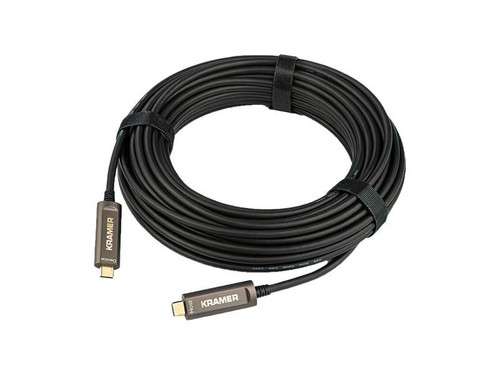

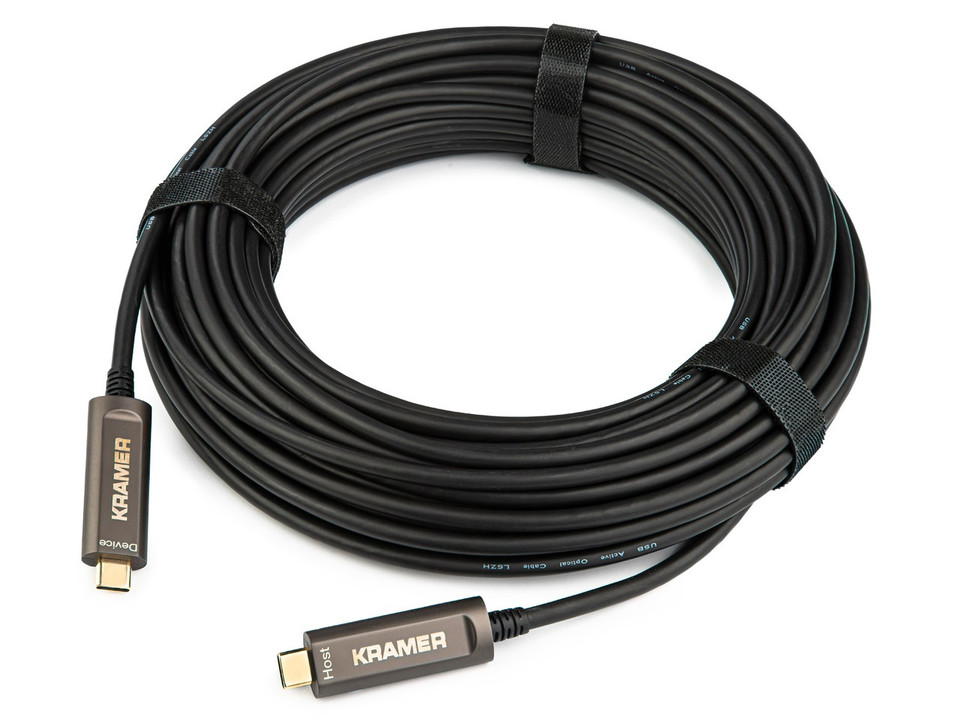

CP-AOCU31/CC is a USB-C(M) to USB-C(M), USB 3.1 Gen-2 SuperSpeed+ cable providing throughput of up to 10Gbps when used with a USB 3.1 host and device. CP-AOCU31/CC is suitable for use with USB cameras‚ printers‚ webcams, keyboards, mice, and more. Note: This cable is for data transfer only, not for charging or ALT Mode Signal.
Features:
- True Plug-and-Play - No additional drivers needed.
- No External Power Needed - Pulls power from the USB source device.
- High Transfer Rates - Up to 10Gbps.
- USB Backward Compatibility - 1.1, 2.0, and 3.0.
- Hybrid Cable - Fiber and copper.
- Current Rating - 3A.
- Varied Selection of Lengths - Available in versions of 3 to 15m (10 to 50ft).
GENERAL
- TYPE: USB 3.1 gen 2
- MAX. DATA RATE: 10 Gbps
CONSTRUCTION
- Cable Type: Hybrid with OM2 fiber and 6 copper wires
- O/E Converter: 4 channel OM2 850 nm VCSEL array
- Material: Bare Copper
PHYSICAL
- Connector A: USB 3.1 type-C male
- Connector B: USB 3.1 type-C male
- Long term crush resistance: 100N/100mm
- Short term crush resistance: 500N/100mm
- Short term tensile strength: 300N
- Long term tensile strength: 150N
- Cable Min Bending Radius: 20mm
JACKET
- Color: Black
- Diameter : 4.5mm
- Consumption: 400mW (max) (for both sides)
ENVIRONMENTAL CONDITIONS
- Operating Temperature: -20 to 50°C
- Storage Temperature: -40 to 70°C
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Safety: CE/FCC
- Environmental: REACH, RoHS 2011/65/ EU
