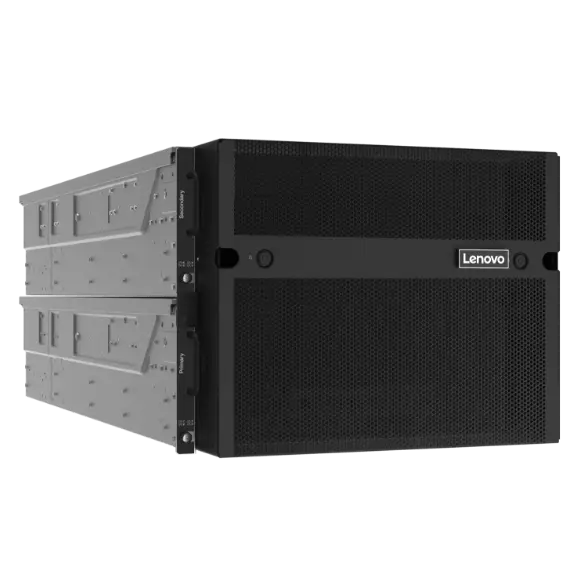

Name: Lenovo ThinkSystem SR950 V3
Brand: Lenovo
SKU: UK-LEN-SR950 V3
Availability: OutOfStock

Description
Warranty Information
Shipping Policy
Protection Plans

8x 4^th Gen Intel^® Xeon^® Scalable processors up to 350W, No HBM, 4 UPI Mesh topology; With Up to 4x QAT, DLB, IAA and DSA Accelerators. Delivers up to 172%* higher performance improvement over the first-generation processor
Up to 32TB of new DDR5 memory and 63%* increase in bandwidth supports larger SAPHANA appliances
Up to 16TB SAP HANA Appliance or 32TB SAP HANA TDI
PCIe Gen5 technology eliminates bottlenecks from expansion slots to NVMe drives
Front and rear I/O access to speed servicing and upgrades, ensuring maximum uptime.

orkloads

The ThinkSystem SR950 V3 server is designed for the most demanding, mission-critical workloads, such as SAP HANA, applications, databases, Big Data, business analytics, ERP and CRM applications, and virtualization. The powerful 8U ThinkSystem SR950 V3 consists of eight 4^th Gen Intel^® Xeon^® Scalable processor family CPUs for compute-intensive workloads and delivers up to 172%* higher performance improvement over the first-generation system.

*Compared to ThinkSystem SR950

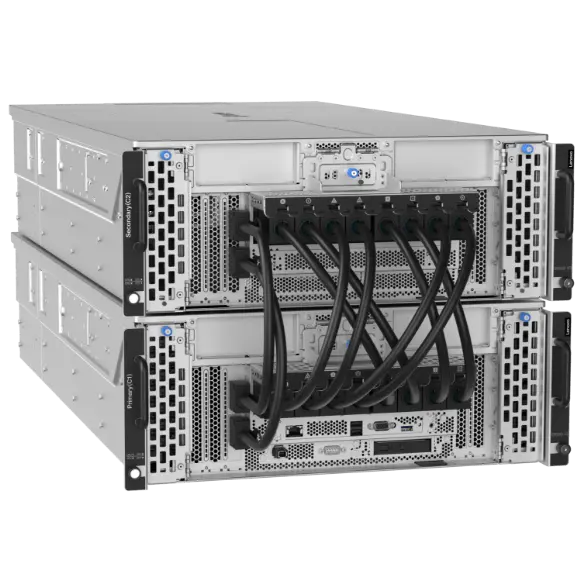

Rear view of the ThinkSystem SR950 V3 server

Maximum Performance and Reliability

Core business workloads require systems that can provide maximum performance and continuous availability. With increased performance across CPU, memory, storage, and I/O, the SR950 V3 establishes new thresholds of performance.

Incorporating eight 4^th Gen Intel^® Xeon^® Scalable processors, the ThinkSystem SR950 V3 supports up to 32TB of memory and 480 processing cores in 8U of rack space. Featuring multiple levels of resiliency to protect data, this workhorse is built to ensure continuous operation and deliver “always-on” reliability.

Two workers at a desk analyzing data on their devices

Leading SAP Solution

The ThinkSystem SR950 V3 server is ideal for the most demanding SAP HANA deployments, providing superior capability and greater business value. Compared to the ThinkSystem SR950, the SR950 V3 provides:

2x more SAP users
33% larger SAP HANA DB
63% increase in bandwidth supports larger

SAP HANA appliances Scale up memory and easily create multi-node, scale-out configurations by networking multiple nodes together enabling support for larger SAP HANA memory sizes.

Learn more about Lenovo SAP solutions >

XClarity Controller interface displayed on a tablet device

Efficient Deployment, Management, & Security

Lenovo XClarity Controller is designed to standardize, simplify, and automate foundation server management tasks. Alerts can be surfaced through the XClarity Controller to Lenovo XClarity Administrator, VMware vCenter, and Microsoft System Center.

Additionally, the Root of Trust (RoT) module includes the Platform Firmware Resiliency (PFR) and Trusted Platform Module (TPM) 2.0 to further secure and authenticate the system. It detects unauthorized firmware updates, recovers corrupted images to a known-safe image, and monitors firmware to ensure it has not been compromised.

Tech Specs

Specifications

Form Factor/Height	8U rack
Processor	8x 4^th Gen Intel^® Xeon^® Scalable processors, up to 350W, No HBM, 4 UPI Mesh topology; With up to 4x QAT, DLB, IAA and DSA Accelerators
Drive Bays	Front: Up to 16x E3.S EDSFF PCIe 5.0 NVMe or up to 16x 2.5″ SAS/SATA SSDs Internal: 2x M.2 NVMe
Memory	Up to 128x DDR5 memory DIMMs DDR5 RDIMMs: 32GB/64GB; 3DS RDIMMs 128GB/256GB 4800MHz @1DPC, 4400MHz @2DPC
Expansion Slots	Support 6x FHHL x16 PCIe 5.0 slots at front Support up to 8x FHHL x16 PCIe 4.0 slots at rear Support up to 1x rear OCP (supports NCSI)
HANA Appliance	SAP Business Warehouse on HANA (BWoH) (Analytical) – 8TB 8S HANA SAP Business Suite on HANA (SoH)/S/4HANA (Transactional) – 16TB 8S HANA
Network Interface	1 OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE 1GbE dedicated management port
Ports	FIO LED (power, locate, error, network activity) Video Port – Front, external LCD operational port USB 2x 3.0 – 1x USB 2.0 in Front Dedicated RJ-45 Ethernet management port
HBA/RAID Support	Common building block PCIe RAID/HBA cards
Power Supply	Up to 12x PSUs, Redundant N+N CFFv4: 1800W Titanium
Systems Management	XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
OS Support	SUSE, Red Hat, VMware vSphere; Visit lenovopress.com/osig for details.
Limited Warranty	1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
Datasheet	lenovopress.com/ds0169
