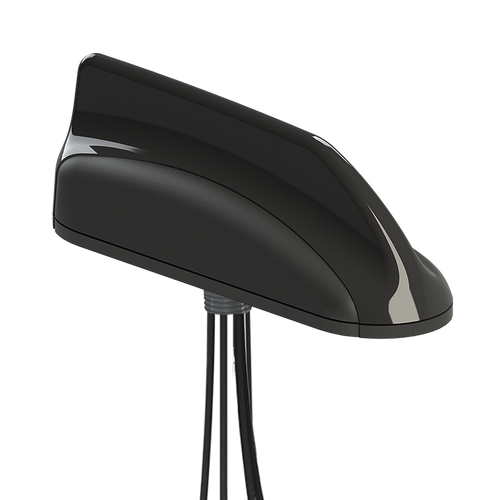

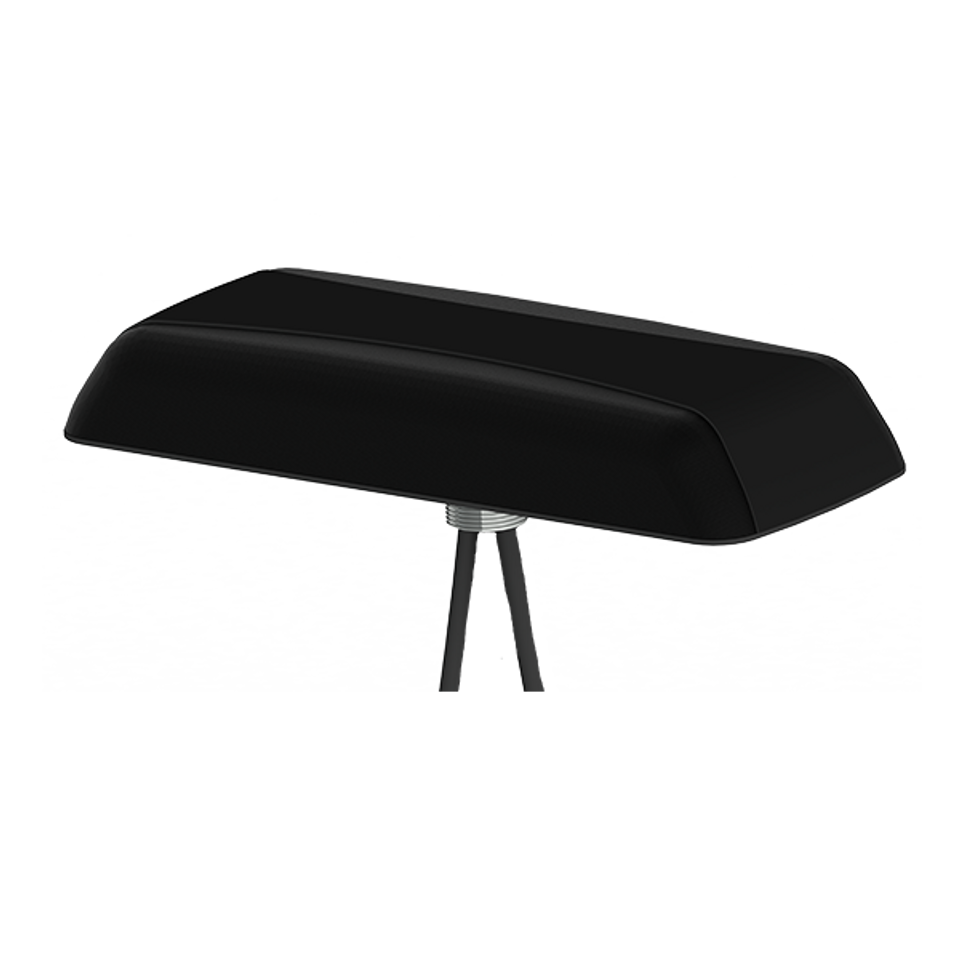

Mobilemark 2-Cable LLPG208 (1x Global 5G/LTE and 1x GNSS) Multiband Surface Mount Antenna - LLP208
The 2-cable LLP208 (1x Global 5G LTE, 1x GPS) antennas include one Global 5G LTE antennas, and one GPS antenna.
The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.
Measuring 9” ( 22.8cm ) x 3.5” ( 8.9cm ) with low profile height of 1.25” ( 3.18cm ), the LLP208 series antennas take up significantly less space than multiple antennas.
Features
- 2 cables: one Global 5G LTE, one GPS
- Cable 1: 617-960 MHz, 3 dBi & 1710-6000 MHz, 4 dBi
- Cable 2 (GPS): 1575 MHz, LNA 26 dB, 5 dBi
- Specify LLPG208 for GNSS only models
