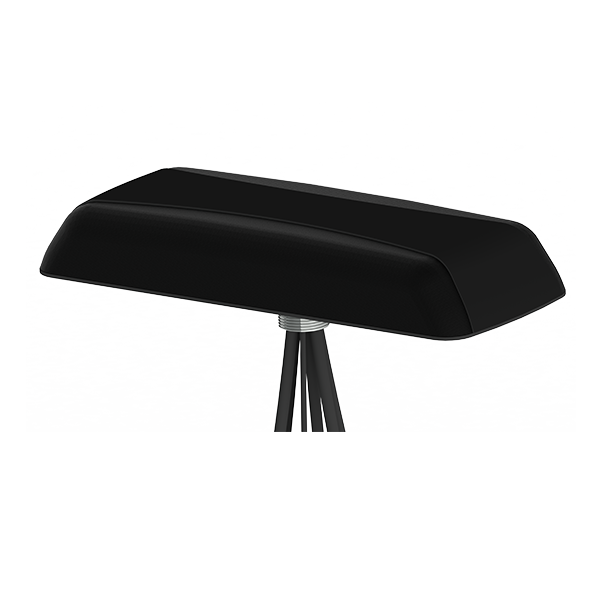

Mobilemark LLPG308 (2x Global 5G LTE, GNSS) Multiband Surface Mount Antenna - LLPG308
The 3-cable LLPWG308 (2x Global 5G LTE, GNSS) antennas include two Global 5G LTE antennas, and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for Cellular LTE. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.
Measuring 9” ( 22.8cm ) x 3.5” ( 8.9cm ) with low profile height of 1.25” ( 3.18cm ), the LLPG308 series antennas take up significantly less space than multiple antennas.
Features
-
3 cables: two Global 5G LTE, one GNSS
-
Cable 1 & 2: 617-960 MHz, 3 dBi & 1710-6000 MHz, 4 dBi
-
Cable 3 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi
-
Specify LLP308 for GPS only models.
