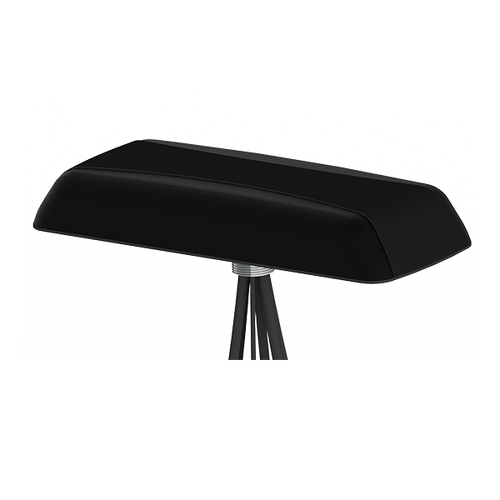

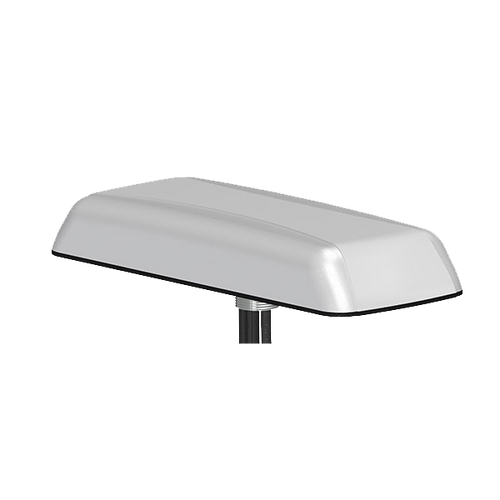

Mobilemark LLPG408 (2x Global 5G LTE, WiFi 6E, GNSS) Multiband Surface Mount Antenna - LLPG408
The 4-cable LLPG408 (2x Global 5G LTE, WiFi 6E, GNSS) antennas include two Global 5G LTE antennas, one WiFi 6E antenna and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for Cellular. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.
Measuring 9” ( 22.8cm ) x 3.5” ( 8.9cm ) with low profile height of 1.25” ( 3.18cm ), the LLPG508 series antennas take up significantly less space than multiple antennas.
The LLPG408 (2x Global 5G LTE, WiFi 6E, GNSS) covers all GNSS elements, for a GPS Only model, specify LLP408
Features
-
4 cables: two Global 5G Sub-6 Cellular LTE, one WiFi 6E, one GNSS
-
Cable 1 & 2: 617-960 MHz, 3 dBi & 1710-6000 MHz, 4 dBi
-
Cable 3: 2.4-2.5 & 4.9-7.2 GHz, 5 dBi
-
Cable 4 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi
-
Specify LLP408 for GPS only models.
