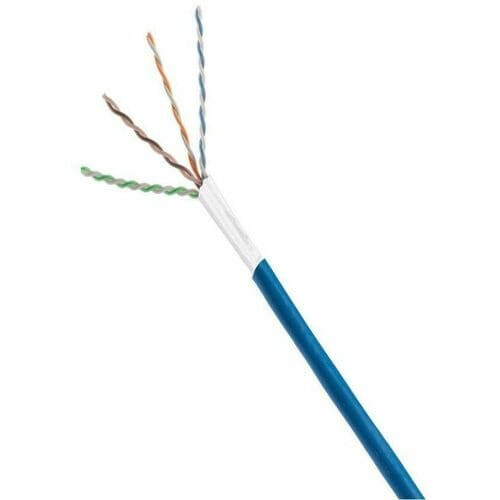

The TX6A Vari-MaTriX HD Cat 6A U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors shall be twisted in pairs. All four pairs shall be surrounded by a metallic Vari-MaTriX tape cut into segments of varying length and covered by a flame retardant PVC (CMP), White jacket. Packaged 1000 ft./305m on a reel.
Features:
- Vari-MaTriX HD Technology Best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression while retaining UTP EMI immunity
- Superior headroom warranty Provides the highest worst-case margins above the industry standard for both electrical and alien crosstalk performance
- High density cable design Improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces
- Extended temperature range Allows operation in 105°C (221°F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE+ or PoE++ applications
- Highest port density All testing and headroom based on 48-port/1RU panels
- Descending length cable markings Easy identification of remaining cable to reduce installation time and cable scrap
