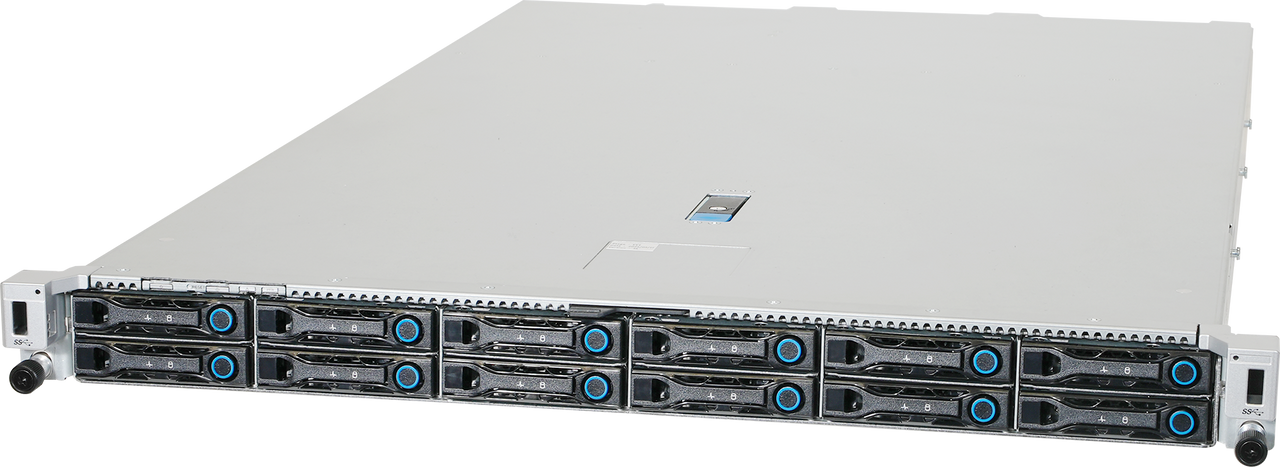

QCT Quanta Grid S55R-1U: Ultimate Compute Architecture for Cost Efficiency
Maximize your data center performance and minimize your total cost of ownership with the QCT Quanta Grid S55R-1U server. This powerful 1U rack server is expertly engineered for high-density computing environments, delivering exceptional performance and efficiency for a wide range of workloads.
Unleash the Power of Intel Xeon Scalability
At the heart of the S55R-1U lies the robust Intel Xeon Scalable Processor family. This server configuration features a single Intel Xeon 6 Scalable processor, providing the processing power you need to tackle demanding applications with ease.
Features:
- Powered by (1) Intel Xeon 6 Scalable Processor
- The Ultimate Cost-Efficient 1U1P Compute server
- Up to (16) DDR5 RDIMM with 5200 MT/s; or (8) RDIMM with 6400 MT/s
- Compact storage bay supporting up to (12) SAS/SATA/NVMe drives.
- Tri-mode supported by designated RAID controllers.
- Flexible network option with (1) OCP 3.0 SFF slot & (1) 1 Gbe LAN port
- Up to (2) PCIe 5.0 x16 expansion slots in a 1U1P chassis
- (7+1) 4056 fans for advanced air cooling design
- Hot-swappable drives & fans with easy service and tool less design
- 1+1 Redundant CRPS AC/DC PSU from 800W to 2000W
- Manageability with DC-SCM 2.0 compliance
Ultimate Compact and Cost-efficient Compute Architecture
Powered by (1) Intel Xeon 6700P-series CPU
Design Compliant to DC-MHS M-DNO (Modular Hardware System Partial Width Density Optimized Specification)
(16) DDR5 RDIMM up to 6,400 MT/s (1DPC); 5,200 MT/s (2DPC)
1+1 80 PLUS CRPS Titanium 800W/1600W/2000W PSU support
Minimal Drive Bay Flexibility and Scalability for Cost-Performance
Minimal storage capability for general purpose:
(12) 2.5” hot-plug NVMe/SATA/SAS drives
Up to (3) PCIe 5.0 x16 expansion slots for flexible configurations
(1) OCP 3.0 SFF slots support up to 400Gb network card
Easy Management
Delivers secure and dynamic data administration for data center resources with Orqestra (QCT System Manager)
Monitors up to 5000 devices per Orqestra module
