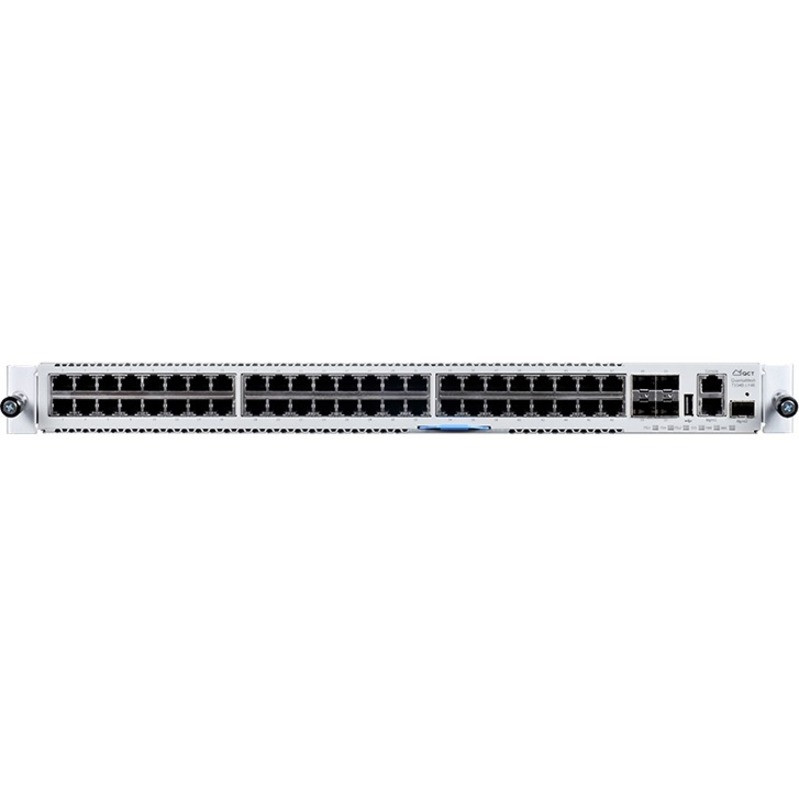

QCT Next Wave Data Center Rack Management Switch - 48 Ports - Manageable - 10/100/1000Base-T - 2 Layer Supported - Modular - Power Supply - Twisted Pair, Optical Fiber - Rack-mountable, Rail-mountable - 3 Year Limited Warranty B2F AIRFLOW RMP 3YR CL 1PSU WITH RK
Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the Quanta Mesh BMS product line, that addresses these changes in the data center market. The Quanta Mesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the Quanta Mesh BMS product line is the best choice.
BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.
QuantaMesh T1048-LY4R supports 48 10BASE-T/100BASE-TX/1000BASE-T and 4 1/10G SFP+ ports equipped with BMC in a compact rack unit size. T1048-LY4R plays a management role in a server rack with not only Ethernet switch functions but also IPMI 2.0 compliance. With ONIE (Open Network Installation Environment) pre-loaded it can be used with any OS which supports the ONIE installer to achieve agile installation and fast response for today's IT demands.
- ONIE Pre-loaded
- x86 Support
- ONL Ready
- BMC Built-in
- Cumulus Linux Ready
| Manageable | Yes |
| Layer Supported | 2 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Slots | 4 |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | No |
| Modular | Yes |
| Stack Port | No |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 48 x Gigabit Ethernet Network |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 1LY4BZZ0STJ |
| Manufacturer Website Address | http://www.quantatw.com |
| Manufacturer | Quanta Computer, lnc |
| Product Model | T1048-LY4R |
| Product Name | The Next Wave Data Center Rack Management Switch |
| Product Line | QuantaMesh |
| Product Series | T1000 |
| Brand Name | QCT |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
| China RoHS | |
| RoHS |
| Weight (Approximate) | 12.28 lb |
| Form Factor | Rail-mountable |
| Rack-mountable | |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 15.5" |
