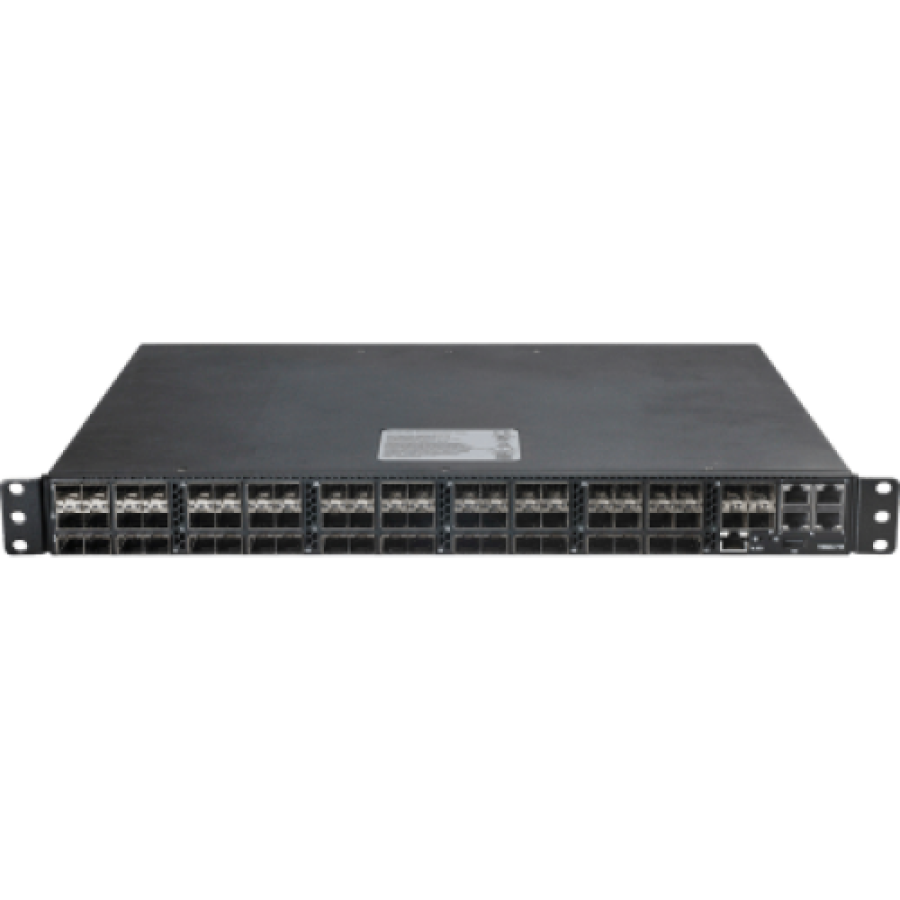

Quanta A Powerful Spine/Leaf Switch for Datacenter and Cloud Computing - T3064-LY1R

The Quanta Mesh T3064-LY1R is a high performance and ultra low latency layer 2/3/4 Ethernet switch with 64 1/10GbE SFP+ ports in a compact rack unit size. For HPC, financial services, and IaaS datacenters, the Quanta Mesh T3064-LY1R offers fast, easy and scalable installation but still keeps low CAPEX and OPEX advantages with high performance.

• Open flow Ready
• Network Automation
• MLAG, OSPF, BGP4, ECMP
• Ultra-low Latency

Simplicity

The Quanta Mesh T3064-LY1R can be managed through an industry standard command-line interface (CLI) which reduces training and operating costs. A user friendly Web GUI is provided via a standard Web browser for switch management. The Quanta Mesh T3064-LY1R also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for easy configuration, monitoring, and remote management by the network administrator. The Auto-Installation feature implemented in the Quanta Mesh T3064-LY1R helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the Quanta Mesh T3064-LY1R is a IPv6 integrated management device.

High Availability

The Quanta Mesh T3064-LY1R is designed for high availability from both a hardware and software perspective. Key features include:

• 1+1 hot-swappable power supplies
• 2+1 hot-swappable fans
• Out-of-band management supported
• 802.1D, 802.1w, and 802.1s supported
• Up to 32 ports per lgroup (LACP) and up to 64 groups
• Multi-chassis LAG for preventing the risks of single point failure
• Up to 32 paths ECMP routing for load balancing and redundancy
• Virtual Router Redundancy Protocol supported

High-Performance L2/L3 Access Deployments

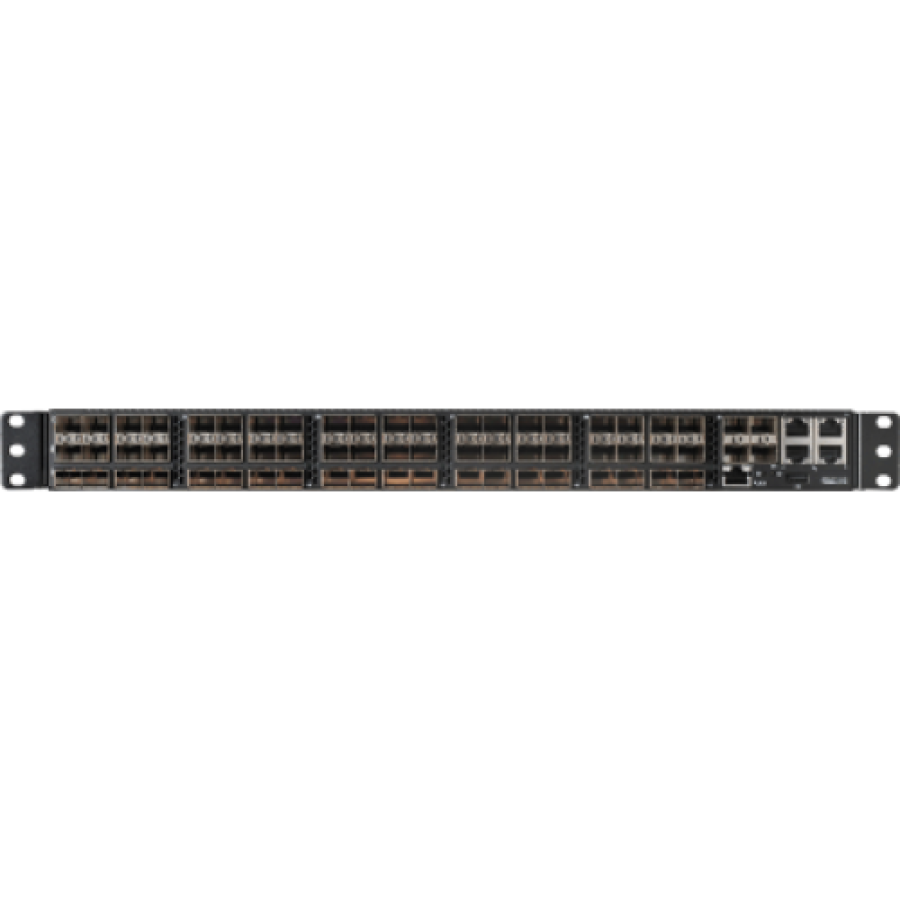

With the compact 1U form factor, high density 64 1/10G SFP+ ports in the front panel, front to back or back to front airflow design, the Quanta Mesh T3064-LY1R is ideal for top-of-rack deployments in high-performance, highly demanding datacenters. The 1.28 terabits per second switching capacity and 960Mpps forwarding rate with low power consumption make the Quanta Mesh T3064-LY1R a powerful solution to aggregate high-performance servers in the datacenter.

Advanced IPv4 and IPv6 Routing

The Quanta Mesh T3064-LY1R is a full layer 2 and layer 3 routing switch that supports advanced IPv4 and IPv6 routing features such as RIP v1/v2, OSPF/ECMP, Ring and OSFPv3. The multicast routing features for IGMP v1/v2/v3, DVMRP, PIM-DM/SM, MLD v1/v2 and PIM-DM6/SM6 are all supported in the Quanta Mesh T3064-LY1R.

Datacenter Application

The Quanta Mesh T3064-LY1R is an IEEE DCB-based switch delivering a high-performance solution to integrate server edge access. The key features include:

• Congestion Notification (CN, 802.1Qau)
• Enhanced Transmission Selection (ETS, 802.1Qaz)
• Priority-based Flow Control (PFC, 802.1Qbb)
• Datacenter Bridging Extension (DCBX, 802.1Qaz)
• FCoE Initiation Protocol (FIP) snooping
