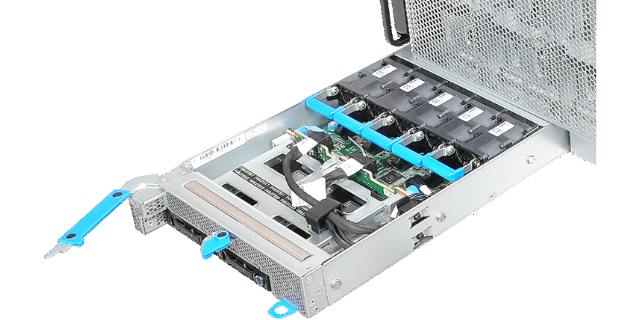

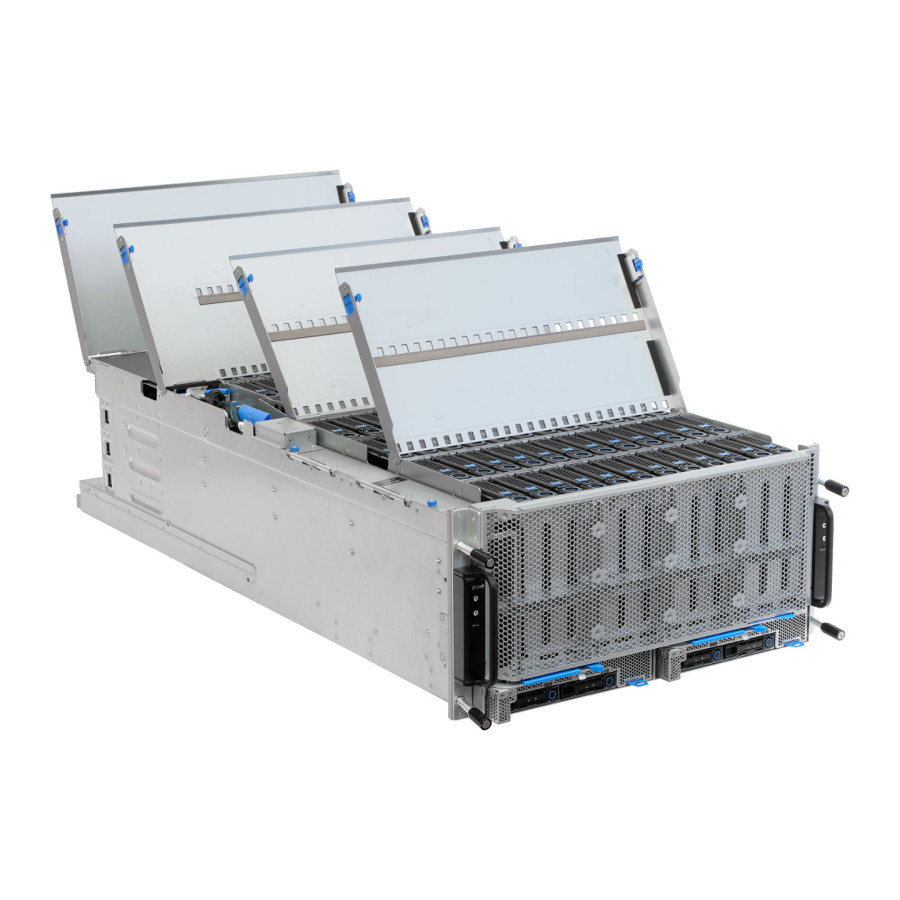

S6P | S24P-5U
Ultra-Dense Storage Pioneer for Data Center Workloads
- Powered by 5th/4th Gen Intel® Xeon Scalable Processor with up to 350W TDP
- Support up to 1.8 Petabytes with an extremely high density of 84 HDDs
- Flexible options for either 1 or 2 server nodes to meet different workload needs
- Latest RVI optimized designs to support future generation HDD
- Most ideal model for warm and cold data storage and SDS applications
Specifications
Processor
Processor Type
5th/4th Gen Intel® Xeon Scalable Processor
Max. TDP Support
350W
Number of Processors
(1) processor per node
Form Factor
5U
Dimensions
W x H x D (inch)
17.6" x 8.7" x 38.7"
W x H x D (mm)
447 x 220 x 984 mm
Chipset
C741 Series
Storage
SKU - #1
Single Node
(2) 2.5’’ NVMe/SATA SSD

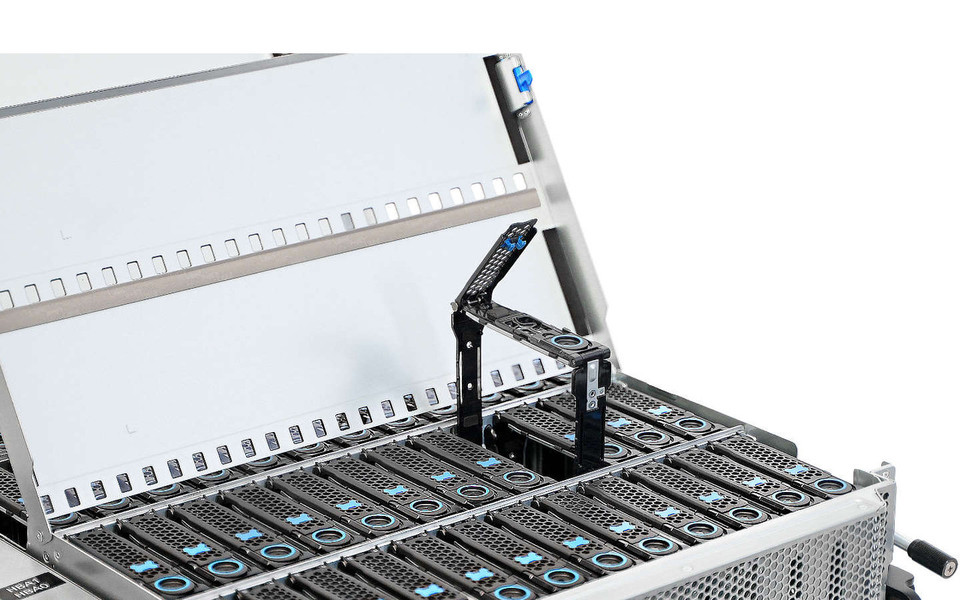

(84) Hot-swappable 3.5” 12Gb SAS or 6Gb SATA HDD /SSD
SKU - #2
Dual Node
(2) 2.5” NVMe/SATA SSD per node
(48) Hot-Swappable 3.5” 12Gb SAS or 6Gb SATA HDD for Node 0
(36) Hot-Swappable 3.5” 12Gb SAS or 6Gb SATA HDD for Node 1
Memory
Total Slots
(8) slots per node
Capacity
Up to 2TB per node
Memory Type
5600MHz DDR5 RDIMM
Memory Size
64GB, 32GB, 16GB RDIMM. More options refer to compatible component list.
Expansion Slot
Default Configuration
(2) PCIe 5.0 x16 HHHL per node
(1) OCP 3.0 SFF slot per node
Network Controller
Optional NIC
Please refer to our Compatible Component List for more information
Front I/O
(1) Power button/LED
(1) ID LED
(1) Fault LED
(1) Status LED
(1) PFR LED
(1) Reset button
Storage Controller
Onboard
Optional Controller
HW RAID card
BRCM 9560-16i PCIe Gen4/SAS3, HHHL.
BRCM 9660-16i PCIe Gen4/SAS4, HHHL
HBA card
BRCM 9500-16i PCIe Gen4/SAS3, HHHL
BRCM 9600-16i PCIe Gen4/SAS4, HHHL
Power Supply
(4) 1600W/2000W Titanium High Efficiency PSU, N+N redundancy supported
Onboard Storage
(2) M.2 2280/22110 SATA/NVMe PCIe Gen3 SSD
Fan
(4) fans supporting one rotor failed redundancy
System Management
Redfish v1.11
IPMI v2.0 Compliant, on board "KVM over IP" support
Orqestra (QCT System Manager) (Optional)
Rear I/O
(1) USB 3.0
(1) Mini display port
(1) LAN (management port)
(1) COM Port (Micro USB TypeB)
(1) Function button/ LED
(1) Power button
(1) PFR LED (for PFR)
Operating Environment
Operating temperature: 5°C to 35°C
Non-operating temperature: -40°C to 65°C
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 95%RH
TPM
TPM 2.0 SPI module
