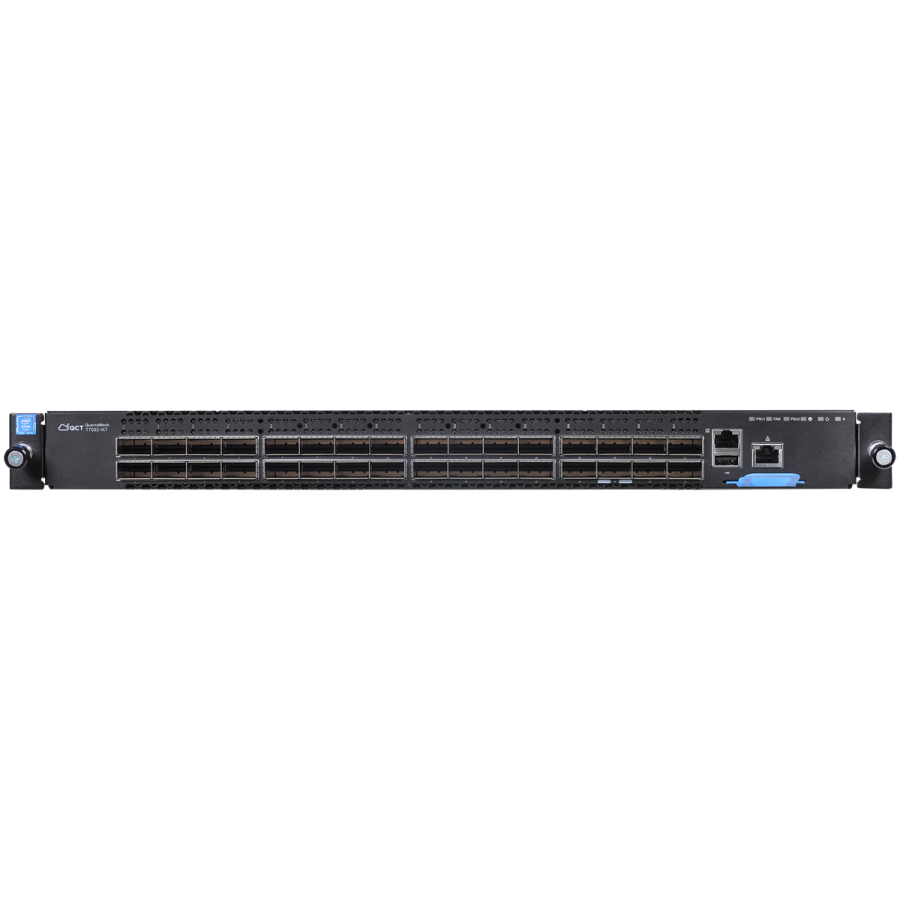

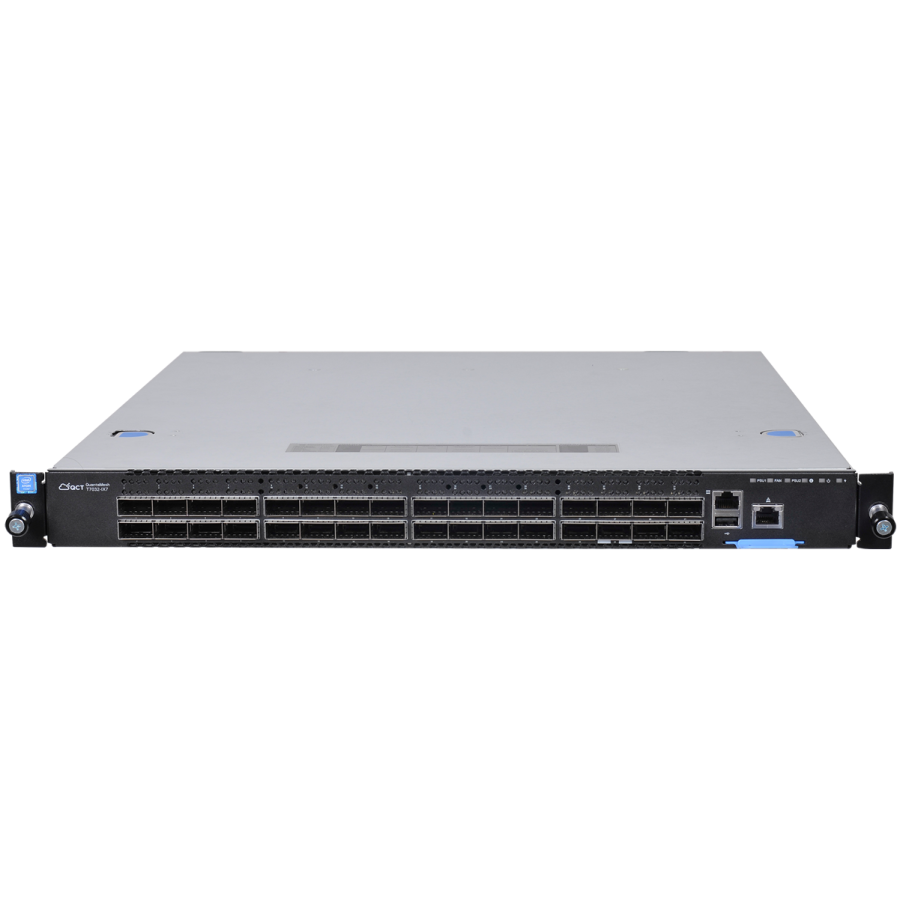

Quanta The Next Wave Enterprise Data Center 100G Switch - BMS T7032-IX7 BDE
Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QCT BMS product line, that addresses these changes in the data center market. The QCT BMS product lines support speeds up to 100G speeds on its Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QCT BMS product line is the best choice.
BMS T7032-IX7 BDE supports 32 QSFP28 ports, each supporting 1 x 100GbE or 1 x 40GbE, or via breakout cables, 2 x 50GbE or 4 x 25GbE or 4 x 10GbE. By levering merchant silicon chip, T7032-IX7_BDE is a high performance high density Ethernet switch with advanced features such as smart table, dynamic load balancing, and VxLAN/RIOT support. T7032-IX7 provides programmable capability which allows for future changes such as telemetry & analysis or network overlays & associated metadata. With ONIE (Open Network Installation Environment) pre-loaded it could be used for multiple network operating system which supports ONIE installer to achieve agile installation and fast response for the changing demand.
Key Features
- 32 x 40/100GbE QSFP28
- x86 CPU Board
- ONIE Pre-loaded
- ONL Ready
- Enterprise SONiC
SPECIFICATION
Physical ports
Port configuration
32 40/100GbE QSFP28 ports
Management Port
Out-of-band management port (RJ-45, 10/100/1000Base-T)
Console Port
1 (RJ-45)
USB
1 (USB 2.0)
Performance
Switching capacity
6.4Tbps
Maximum forwarding rate
2Bpps
Latency
Ultra-low latency
MAC
Unified Forwarding Table to dynamically allocate the L2/L3 tables
Major Components
ASIC
Broadcom Trident3 BCM56870
CPU
Intel Broadwell DE D-1527, TPM 2.0
Memory
8GB SO-DIMM DDR4
Flash
32MB
Storage
128G SSD M.2
Mechanical
Dimension (HxWxD)
43.2x440x508mm
Weight
9.78kg (NET)
Airflow
Front to Back
Back to Front
Environmental Specifications
Operating temperature
0~45°C
Operating humidity
90% maximum relative humidity
Operating Altitude
0°C to 40°C @1800m
Power
PSU
100~240VAC, 50/60Hz, 750W*2 (1+1)
