This all new Server Technology Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features dedicated HDOT C13 outlets and HDOT Cx which can be treated as either a C13 or C19 outlet. The Server Technology Basic PDU provides reliable power distribution for installing IT equipment into the rack/cabinet.
Specifications
| Input Voltage (V) | 208 |
|---|---|
| Input Plug | NEMA L15-20P |
| Input Current (A) | 20 |
| Input Current Rated (A) | 16 |
| Input Power Capacity (kW) | 5.8 |
| Connector Rating | (18) x IEC 60320/C13 North American Rating: 12A @208V L-L (15A Peak) (18) x Cx North American Rating: 16A @208V L-L (20A Peak) |
| Dimensions | 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm] |
| Outlets | A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place. |

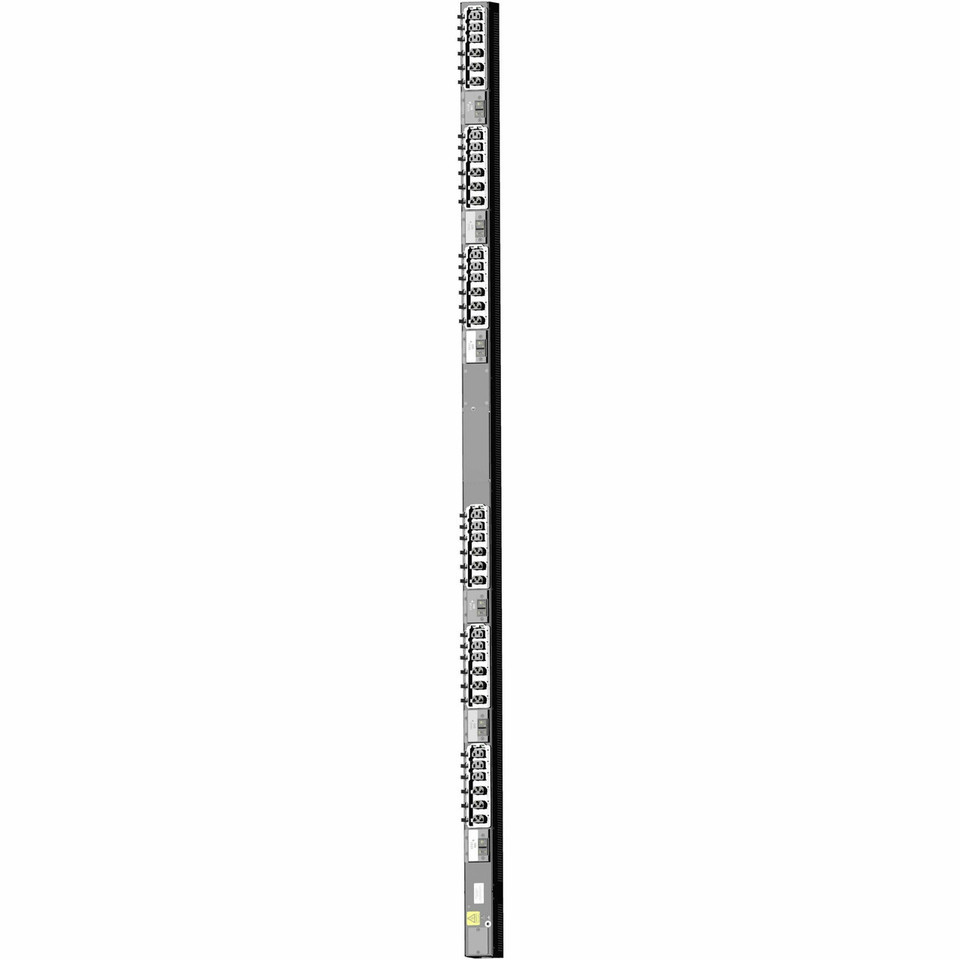

| Manufacturer Part Number | C3B36RL-DBJE0AT3 |
