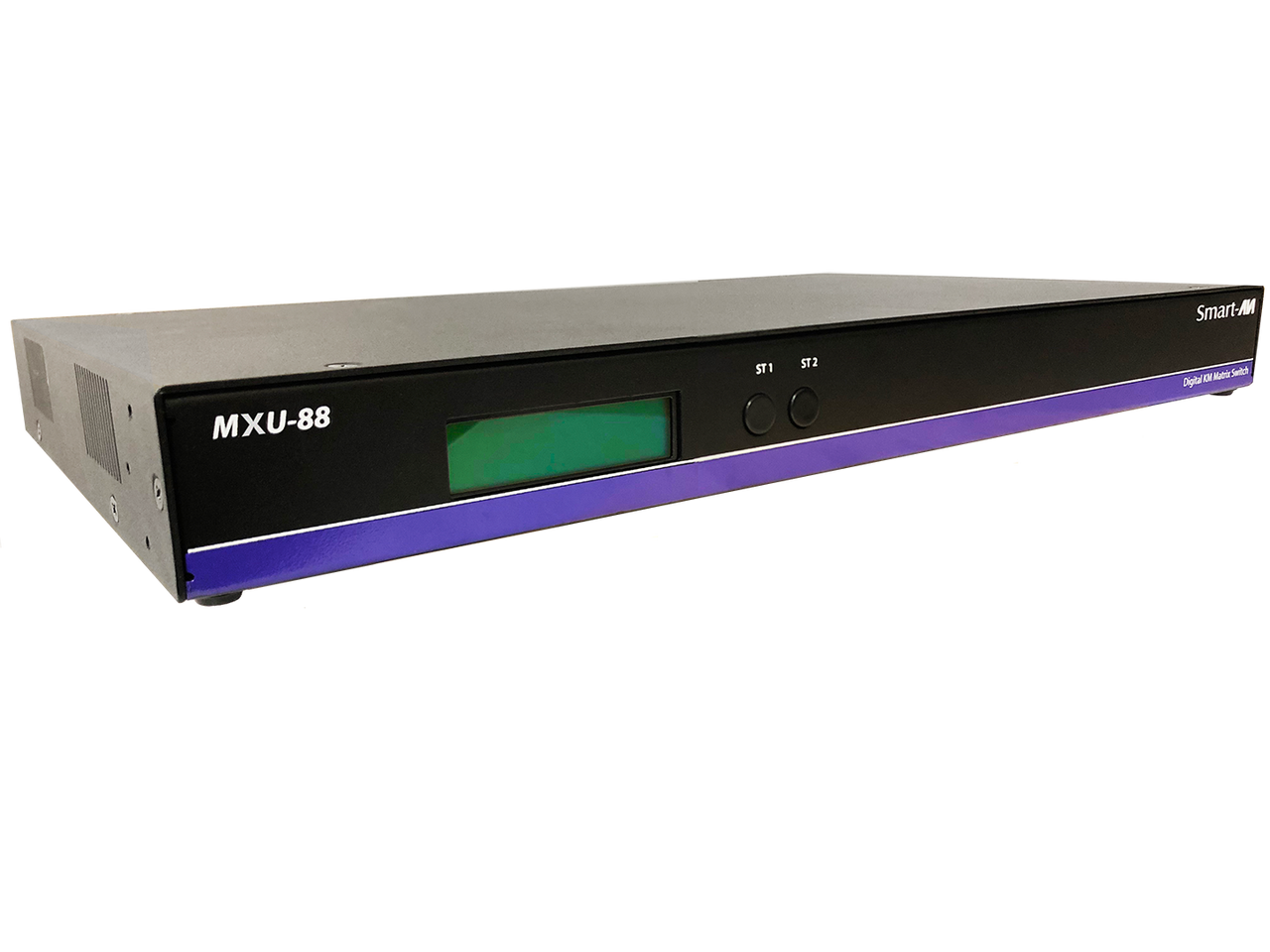

SmartAVI MXU-88: 8X8 HDMI/USB 2.0 Matrix Switch - MXU88-S

What is the MXU-88?

The MXU-88 is a 8X8 HDMI & USB 2.0 matrix switch: it lets up to eight users easily access & control eight remote computers and USB 2.0 devices from eight workstations, each equipped transparent USB peripherals like keyboards and mice, as well as 4K-compatible HDMI monitors.

The MXU-88 offers support for transparent USB 2.0 peripherals like keyboards, mice, hard-drives, scanners, and more. It is highly compatible with HDMI displays, and can support resolutions up to 4K (3840×2160 @ 30Hz).

How to control the MXU-88

SmartAVI designed the MXU-88 to be very user-friendly with two easy modes of control:

• Front Panel Buttons: use a simple two-button interface to navigate between USB 2.0 and HDMI inputs, or accomplish more advanced features like EDID learning.
• Web-based Console: connect to a web-based control interface which lets you visualize connections and navigate between them with ease via Ethernet.

Applications for MXU-88

The MXU-88 excels in multi-user settings, and works well in various real-world applications such as remote project supervision or group-based video editing endeavors.

FEATURES

• • (8) HDMI inputs with resolutions up to 4K (3840×2160 @ 30Hz)
  • (8) HDMI outputs with resolutions up to 4K (3840×2160 @ 30Hz)
  • (8) USB 2.0 Type B inputs
  • (8) Dual USB 2.0 Type A outputs
  • Supports digital audio over HDMI
  • Supports DVI-D with adaptors
  • Supports USB 2.0 keyboard-mouse control (NO EMULATION)
  • Supports transparent USB 2.0 peripheral devices (external hard-drives, smart-card readers, scanners, printers, etc…)

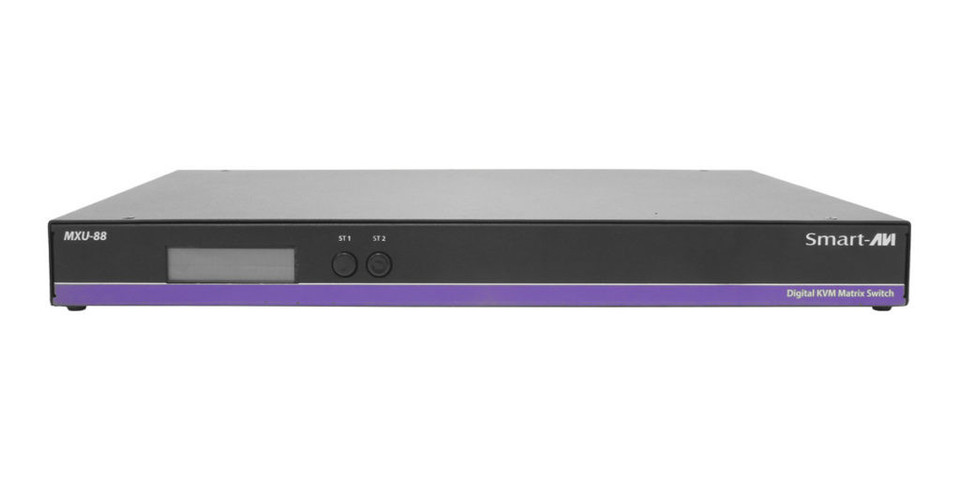

  • Simple two-button front panel control with LCD status display
  • Full web-based control console over Ethernet
  • Learns and stores EDID information
  • HDMI 1.4 & HDCP Compliant
  • Control Sun, Mac, or PC computers from one workstation

Includes:

• (1) MXU-88: 8X8 HDMI/USB 2.0 Matrix Switch
• (1) PS12VDC5A power supply
• (1) Quick Start & Installation Guide
