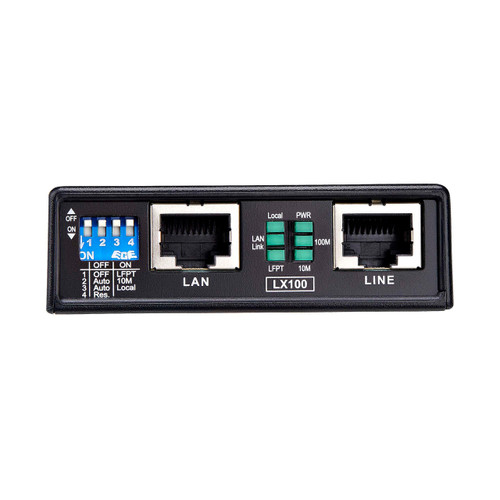

StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km. Maximum data transfer rate: 100 Mbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Connectivity technology: Wired. Power source type: DC, DC output voltage: 12 V, Power requirements: 12 DC. Dimensions (WxDxH): 72 x 95 x 22 mm, Weight: 90 g
Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines

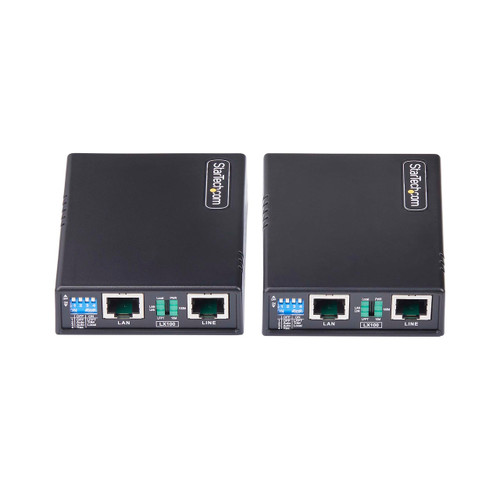

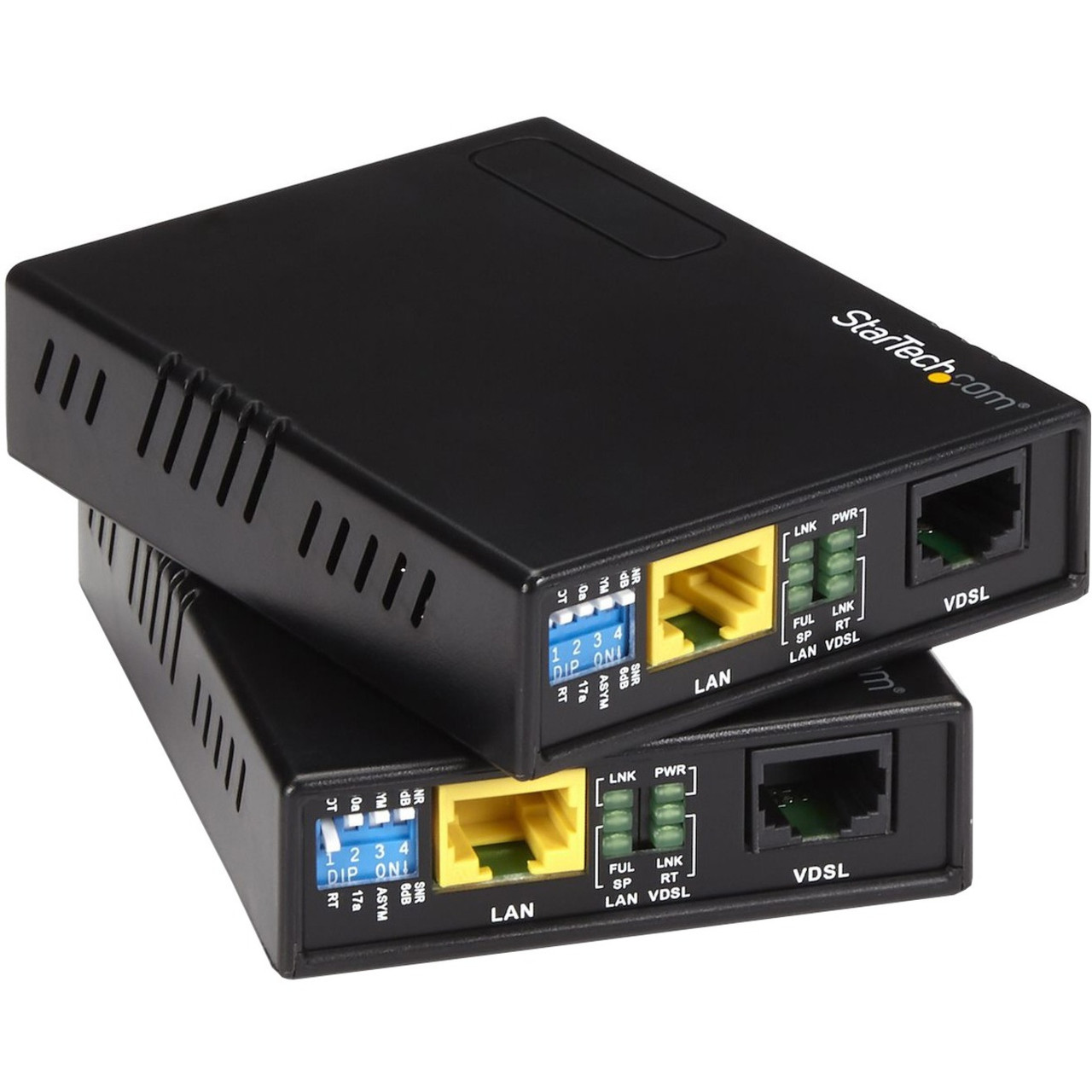

The 110VDSLEXT VDSL Ethernet extender kit lets you span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity, allowing you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL (VDSL2) kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included.
A perfect solution for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless may be impossible. The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference.
Solution Diagrams:
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Provides high speed Ethernet extension over copper telephone line or other existing two pair wiring enabling network connectivity to remote locations up to 1km away - Allows network connectivity in buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless are impossible - Simple Plug and play installation with no software or driver installation for a hassle-free setup
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | 110VDSLEXT |
| HSSL part number | UK-110VDSLEXT |
| UPC / GTIN | 0065030832618 |
| Product type | Bridges & Repeaters |
| Data transmission | |
| Maximum data transfer rate | 100 Mbit/s |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| LED indicators | Yes |
| Connectivity LEDs | Y |
| Power | |
| Power source type | DC |
| DC output voltage | 12 V |
| Power requirements | 12 DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) | 72 x 95 x 22 mm |
| Weight | 90 g |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-110VDSLEXT.
Additional information
Startech 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire � 1km - Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines - ethernet extender - lan extender - ethernet over phone - network extender - short haul modem
The 110VDSLEXT VDSL Ethernet extender kit lets you span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity, allowing you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL (VDSL2) kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included.
A perfect solution for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless may be impossible. The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference.
Solution Diagrams:
Backed by a Startech 2-year warranty and free lifetime technical support.
- Selectable CPE and CO mode via DIP switch
- IEEE 802.1Q VLAN tag transparent
- Supports flow control for Fast Ethernet (pause frame or Back Pressure)
- Allows you the ability to select fixed SNR margin (9 dB) or fixed target data rate
- Light in weight and a very compact design
- Supports both symmetric and asymmetric transmission
