StarTech.com HP JD092B Compatible SFP+ Transceiver Module - 10GBASE-SR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 11100 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 1967709 h. Power consumption (typical): 1.2 W. Compliance certificates: RoHS, Certification: CE, FCC, UL. Width: 14 mm, Depth: 57 mm, Height: 13 mm
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

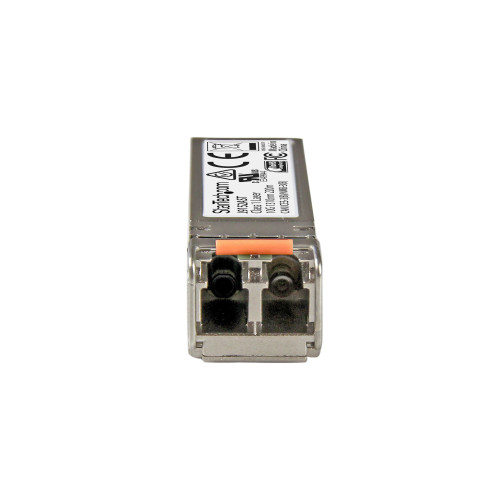

The JD092BST is an HP JD092B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 11.1 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with HP JD092B guaranteed - StarTech.com SFP modules are backed by a lifetime warranty - Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | JD092BST |
| HSSL part number | UK-JD092BST |
| UPC / GTIN | 0065030865241 |
| Product type | Network Transceiver Modules |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 1967709 h |
| Power | |
| Power consumption (typical) | 1.2 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 75% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 13 mm |
| Weight | 17 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-JD092BST.
