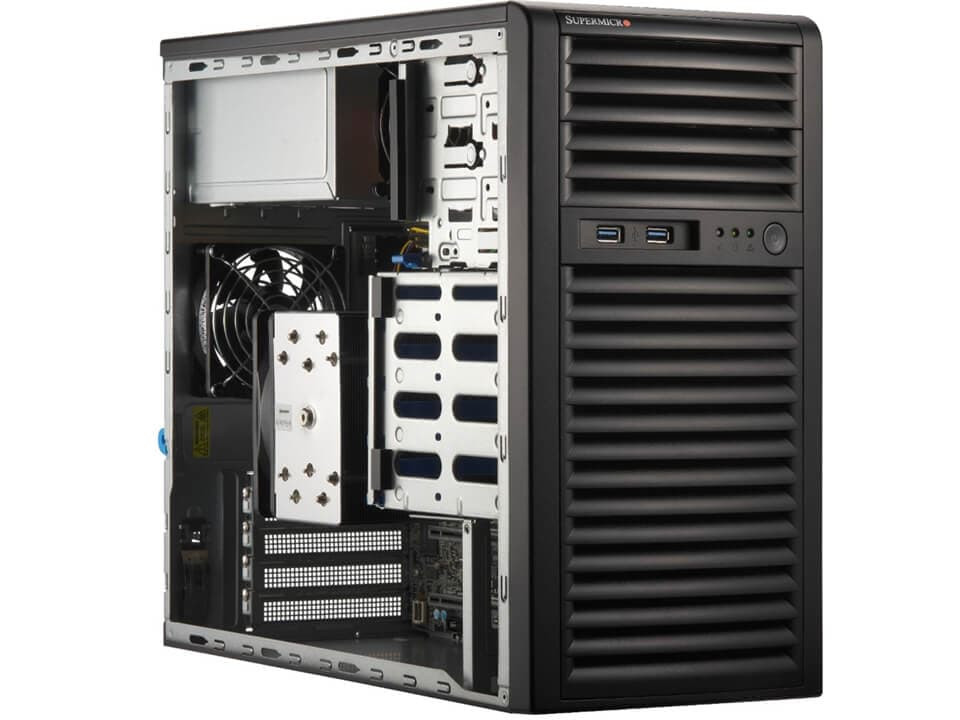

Name: Supermicro Mainstream A+ Server AS-3015A-I - UP Mid-Tower Workstation for SMB and Content Creation
Brand: Supermicro
SKU: UK-SUP-AS-3015A-I
Availability: OutOfStock

Supermicro Mainstream A+ Server AS-3015A-I - UP Mid-Tower Workstation for SMB and Content Creation

Product code: UK-SUP-AS-3015A-I

Condition: New

Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

Description
Warranty Information
Shipping Policy
Protection Plans

Description

Supermicro Mainstream A+ Server AS-3015A-I - UP Mid-Tower Workstation for SMB and Content Creation

Key Applications

2D/3D Content Creation
Email/Firewall/Application Server
Designed for small and medium businesses

Key Features

AMD EPYC 4004 / 4005 or Ryzen 7000 / 9000 series LGA1718 up to 170W TDP Processors
4 Dual channel ECC/Non-ECC DDR5 unbuffered DIMM slots supporting up to 192GB memory
2 PCIe 5.0 x16 (16/NA or 8/8) high-throughput slots and 2 PCIe 5.0x4 M.2 slots
Dual 1GbE LAN (Intel I210-AT)

Specifications

Product SKUs
A+ Server AS -3015A-I

Motherboard
Super H13SAE-MF

Processor
CPU	Single processor(s) AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors
Core Count	Up to 16C/32T
Note	Supports up to 170W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width GPU
Supported GPU	NVIDIA PCIe: RTX 2000 Ada, RTX 4070, RTX 4000 Ada Generation, RTX A4000, RTX A2000, RTX 6000 Ada Generation AMD PCIe: Radeon Pro W7500, Radeon Pro W7800 View GPU Options

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1 support
NVMe	NVMe; RAID 0/1 support(Native)
Chipset	AMD B650
Network Connectivity	1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 2 RJ45 1GbE with Intel I210-AT

Input / Output
Video	1 VGA port 1 HDMI 2.0b port 1 DisplayPort 1.4a port
Audio	Rear Audio

System BIOS
BIOS Type	AMI 32MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Supply Chain Security: Remote Attestation Runtime BMC Protections

PC Health Monitoring
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature

Chassis
Form Factor	Mini-Tower
Model	CSE-731i-668B

Dimensions and Weight
Height	14.25" (362 mm)
Width	7.25" (184 mm)
Depth	16.75" (425 mm)
Package	20" (H) x 11" (W) x 21" (D)
Weight	Gross Weight: 22 lbs (9.98 kg) Net Weight: 18 lbs (8.16 kg)
Available Color	Black

Front Panel
LED	HDD activity LED Network activity LEDs Power LED System Overheat LED
Buttons	Power On/Off button
Port	USB 3.0 Port(s)

Expansion Slots
PCI-Express (PCIe) Configuration	Default 1 PCIe 5.0 x16 FHFL slot Option A 2 PCIe 5.0 x8 FHFL slots

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 front fixed 3.5" SATA drive bays Option A: Total 4 bays 4 front fixed 2.5" SATA drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options
Peripheral Bays	2 5.25" peripheral bays

System Cooling
Fans	1x 90mm Fan(s) 1x 80mm Fan(s)
Air Shroud	1 Air Shroud

Power Supply

1x 668W Platinum Level (92%) power supply

Dimension (WxHxL)	150 x 86 x 185 mm
Input	100-240Vac 668W: 100-240Vac / 50-60Hz
+12V	Max: 54A / Min: 0.2A (100Vac-240Vac) Max: 54A (100Vdc-240Vdc)
5V SB	Max: 2A / Min: 0A
Output Type	24pin ATX

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
