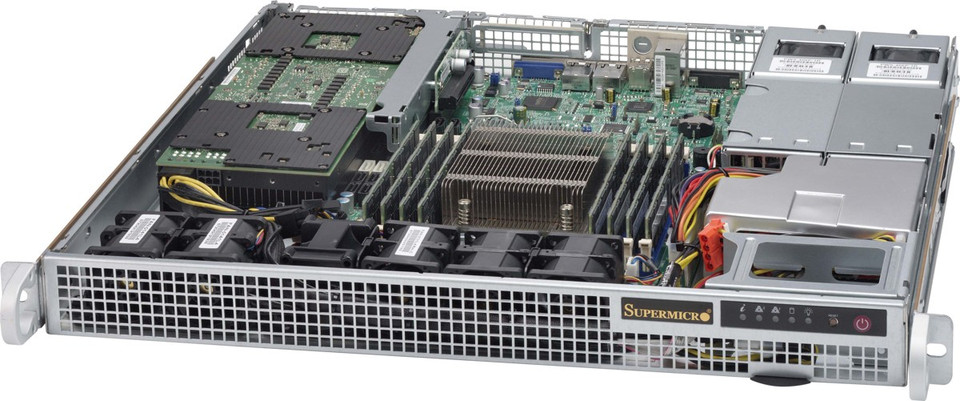

Support WIO MB, max MB size 12.3" x 13" and Proprietary MB 8" x 13"; Up to 2 x 2.5" fixed with bracket; 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm; 2 full height expansion slot(s), 1 low-profile expansion slot(s); 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling
| Height | 1.7" (43 mm) |
|---|---|
| Width | 17.2" (437 mm) |
| Depth | 16.9" (429 mm) |
| Gross Weight | 25.2 lbs (11.43 kg) |
| Available Color | No Paint |
| Fans | Optional 2x fans for AOC cooling 4x 40x56mm PWM fan(s) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Power Supply | 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm |
| Power Efficiency | 94% |
| Total Output Power and Input | 400W with Input 200 - 240Vdc 400W with Input 100 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 220 x 54.5 x 40.25 mm |
Supermicro SC514-R407W is supplied to order. Tell us the configuration you need and our team will confirm pricing and lead time.
