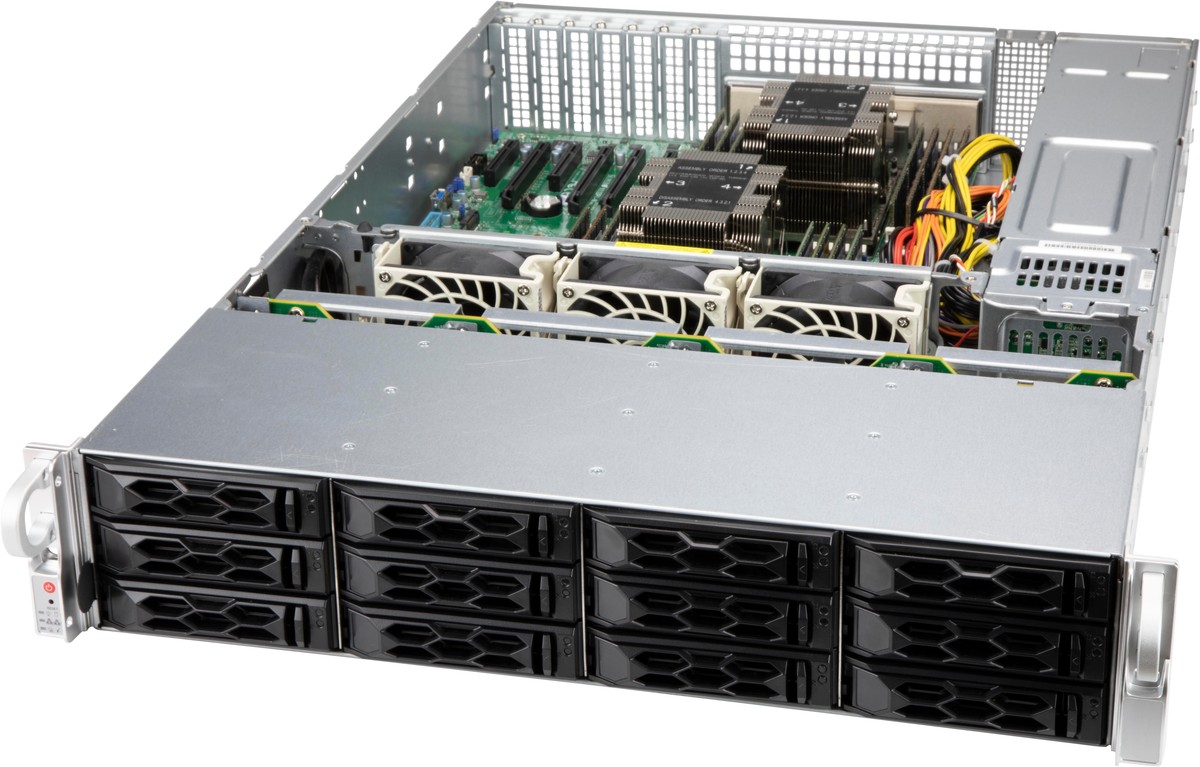

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed; 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3 Optional rear 2x 2.5" hot-swap drive bay kit; 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices; 600W / 650W 1U Redundant Power Supply; 7x low-profile expansion slot(s); 3x 8cm high-performance PWM fan(s); Support service tag for system information; OEM Only, MOQ Applies
| Height | 3.5" (89 mm) |
|---|---|
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Gross Weight | 37 lbs (16.78 kg) |
| Available Color | Black |
| Fans | 3x 8cm high-performance PWM fan(s) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Power Supply | 600W / 650W 1U Redundant Power Supply |
| Power Efficiency | 94% |
| Total Output Power and Input | 650W with Input 200 - 240Vac 600W with Input 100 - 127Vac 650W with Input 200 - 240Vdc |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
Supermicro SCLA26E1C4-R609LP is supplied to order. Tell us the configuration you need and our team will confirm pricing and lead time.
