TP-Link Beam Bridge 5 UR KIT. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 15000 m. Antenna design: External, Antenna type: 2x2, Antenna gain level (max): 23 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5.150 - 5.850 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at,.... Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2,...
Product Overview

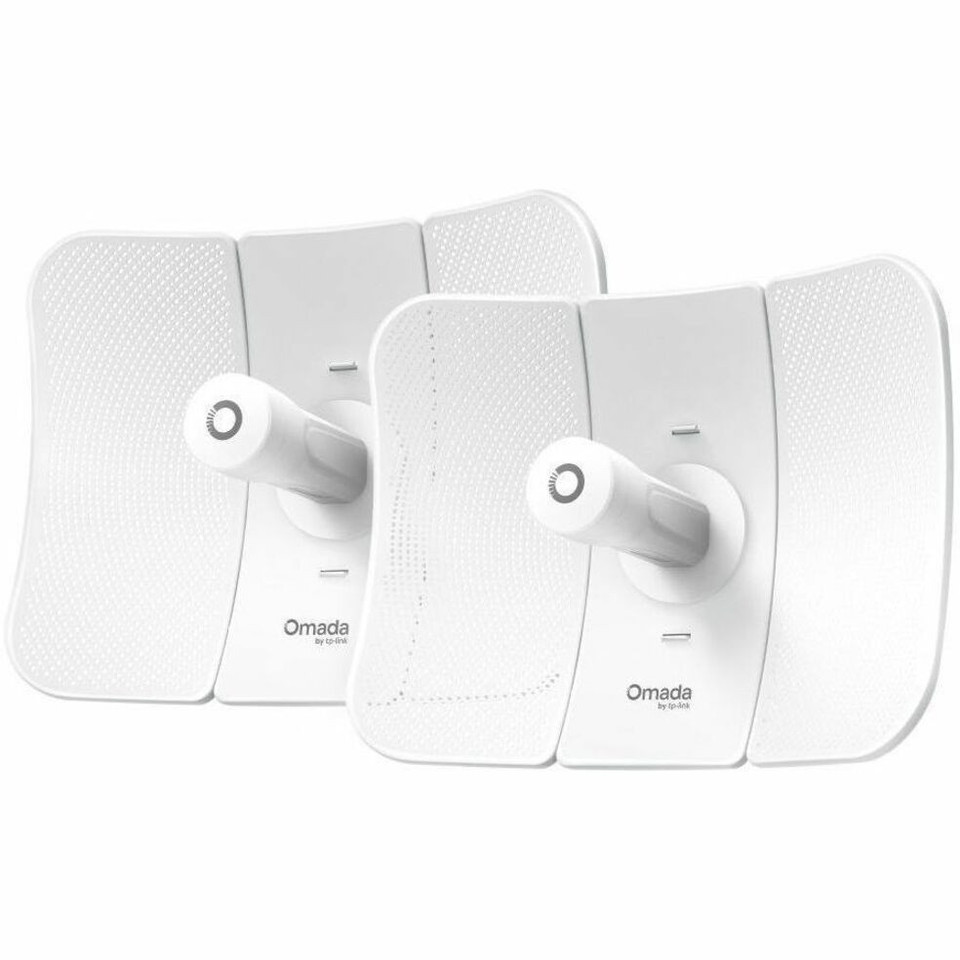

Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical.
Business-Grade 15-km Ultra-Range Wi-Fi Connectivity
It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments.
Effortless Plug-and-Play Setup
Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments.
App-Guided Alignment for Optimal Performance
Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.
Simple Deployment with PoE Support
1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply.
Outdoor-Ready Design for Extreme Conditions
Beam Bridge 5 UR KIT supports IP65 weatherproof and 6kV lightning protection safeguard your network in harsh outdoor environments. Additionally, an extended temperature tolerance of -40 °C to 70 °C makes it ideal for extremely hot and cold environments.
Remote Monitoring & Management
Use the Omada app for easy on-site setup-no internet required. For additional flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.
Specifications
| General | |
|---|---|
| Brand | TP-Link |
| Manufacturer part number | BEAM BRIDGE 5 UR KIT |
| HSSL part number | UK-TPL-BEAM-BRIDGE-5-UR-KIT |
| UPC / GTIN | 1210002603782 |
| Product type | Bridges & Repeaters |
| Data transmission | |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 15000 m |
| Antenna | |
| Antenna design | External |
| Antenna type | 2x2 |
| Antenna gain level (max) | 23 dBi |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 5.150 - 5.850 GHz |
| Signal strength | 27 dBm |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Output power (dBm) | 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C, FCC (Conducted Power) 5 GHz: 27 dBm in U-NII-1, 27 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2 |
| Management features | |
| Web-based management | Yes |
| DHCP client | Yes |
| Features | |
| Product type | Network bridge |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP65 |
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 360000 h |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 15.8 W |
| Power consumption (max) | 15.8 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 158 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC) |
| Certification | ETSI EN 300 328, ETSI EN 301 893, EN 55032, EN 55035, EN 301489-1, EN 301489-17, EN 62368-1, IEC 62368-1 |
| Weight & dimensions | |
| Width | 366 mm |
| Depth | 280 mm |
| Height | 207 mm |
| Weight | 1.1 kg |
| Packaging content | |
| Packaging content | • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-TPL-BEAM-BRIDGE-5-UR-KIT.
Additional information
5GHz Ultra-Range Wireless Bridge PORT: 1 Gigabit RJ45 Port SPEED: 867 Mbps at 5 GHz FEATURE:24V Passive PoE/ 802.3af POE,Wireless Bridge,23 dBi Dish Antenna, Up to 15Km, PtP, Auto-Pairing , IP65 Weatherproof & 6KV Lightning Protection for Outdoors ,...
Specifications
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | BEAM BRIDGE 5 UR KIT |
| Shipping weight | 8.05 lb |
| Product type | Hardware |
| UPC | 840460601566 |
