TP-Link PSM900-AC. Total power: 900 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Compatible products: SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y. Product colour: Metallic. Width: 95.8 mm, Depth: 259.5 mm, Height: 40.1 mm. Quantity per pack: 1 pc(s)

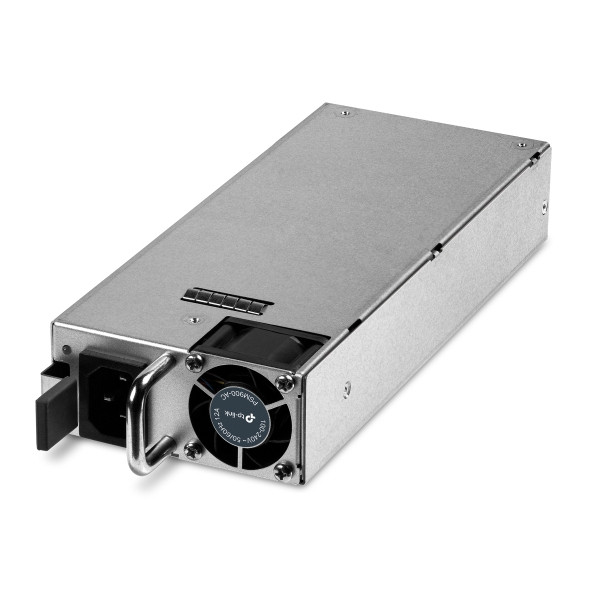

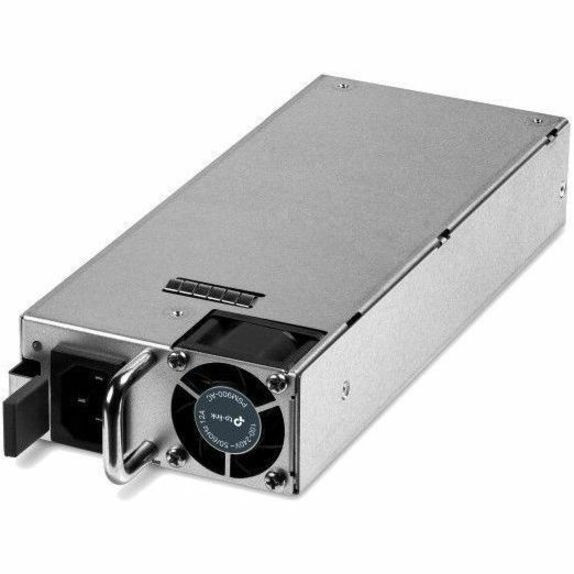

The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
Specifications
| General | |
|---|---|
| Brand | TP-Link |
| Manufacturer part number | PSM900-AC |
| HSSL part number | UK-TPL-PSM900-AC |
| UPC / GTIN | 4895252502718 |
| Product type | Power Supply Units |
| Power | |
| Total power | 900 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 10 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
| Performance | |
| Compatible products | SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y |
| Design | |
| Product colour | Metallic |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 95.8 mm |
| Depth | 259.5 mm |
| Height | 40.1 mm |
| Other features | |
| Mounting type | Rack mounting |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-TPL-PSM900-AC.
Additional information
900W AC Power Supply Module SPEC: Up to 900 watts output power, Steel Case with FAN FEATURE: Hot swappable power supply module, 100 V 240 V 50/60 Hz input, 53.5 VDC output, Suitable for L3 PoE Switch such as SG6654XHP and SG6428XHP
Specifications
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | PSM900-AC |
| Shipping weight | 4.2 lb |
| Product type | Hardware |
| UPC | 840030709241 |
