StarTech.com Universal USB 3.0 Laptop Docking Station - DVI. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 4.8 Gbit/s, Maximum digital resolution: 1920 x 1200 pixels. AC input voltage: 115-230 V, Output voltage: 5 V, Output current: 4 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High...

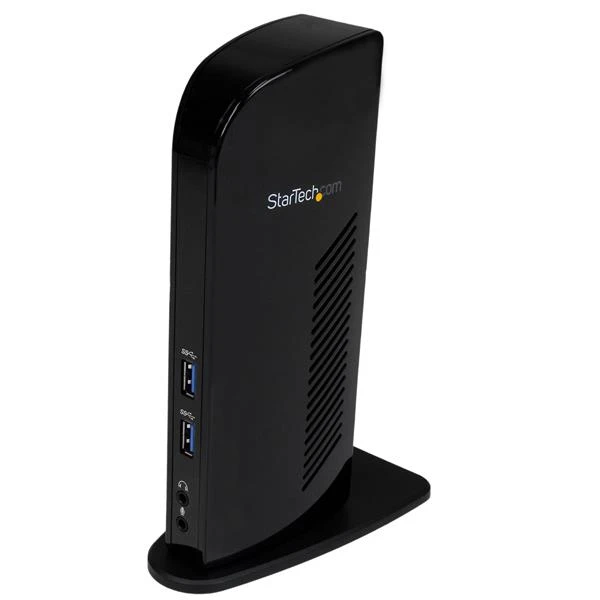

Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port
The USB3SDOCKD Universal USB 3.0 Laptop Docking Station/Port Replicator with DVI, Audio and Ethernet adds an external DVI output, headphone/mic, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports, all from a single device and over a single SuperSpeed USB 3.0 connection.
This highly versatile port replicator/universal docking station lets you expand or mirror your computer's main desktop at video resolutions up to 1920x1200, with DVI monitor output, as well as an included DVI to VGA adapter.
The docking station also combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into an all-in-one laptop/notebook docking station that makes for the perfect accessory for users who need to connect and manage many devices on their laptops at home or at the office.
The USB3SDOCKD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Increase productivity and extend or mirror your desktop at up to 1920x1200, with DVI monitor output and included DVI to VGA adapter - USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device - Laptop docking station provides two additional USB 3.0 and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | USB3SDOCKD |
| HSSL part number | UK-STT-USB3SDOCKD |
| UPC / GTIN | 0065030847681 |
| Product type | Laptop Docks & Port Replicators |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DVI-I ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 4.8 Gbit/s |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| LED indicators | Power, USB |
| Housing material | Plastic |
| Certification | CE, FCC |
| Power | |
| AC input voltage | 115-230 V |
| Output voltage | 5 V |
| Output current | 4 A |
| Power consumption (typical) | 20 W |
| Compatible power plug types | EU, UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Width | 77 mm |
| Depth | 195.7 mm |
| Height | 126.3 mm |
| Weight | 364 g |
| Packaging content | |
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Interface adapters included | DVI-I male - VGA female |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| Minimum system requirements | CPU: i3 Dual core 2.8GHz + RAM: 2GB + |
| Chipset | DisplayLink - DL-3700, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E |
| Number of microphone inputs | 1 |
| USB data transfer rates | 12,480,5000 Mbit/s |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-USB3SDOCKD.
