StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay. Storage media type: HDD, SSD, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Maximum data transfer rate: 6 Gbit/s, LED indicators: Activity, Power. AC input voltage: 100-240 V, Output voltage: 12 V. Weight: 318 g

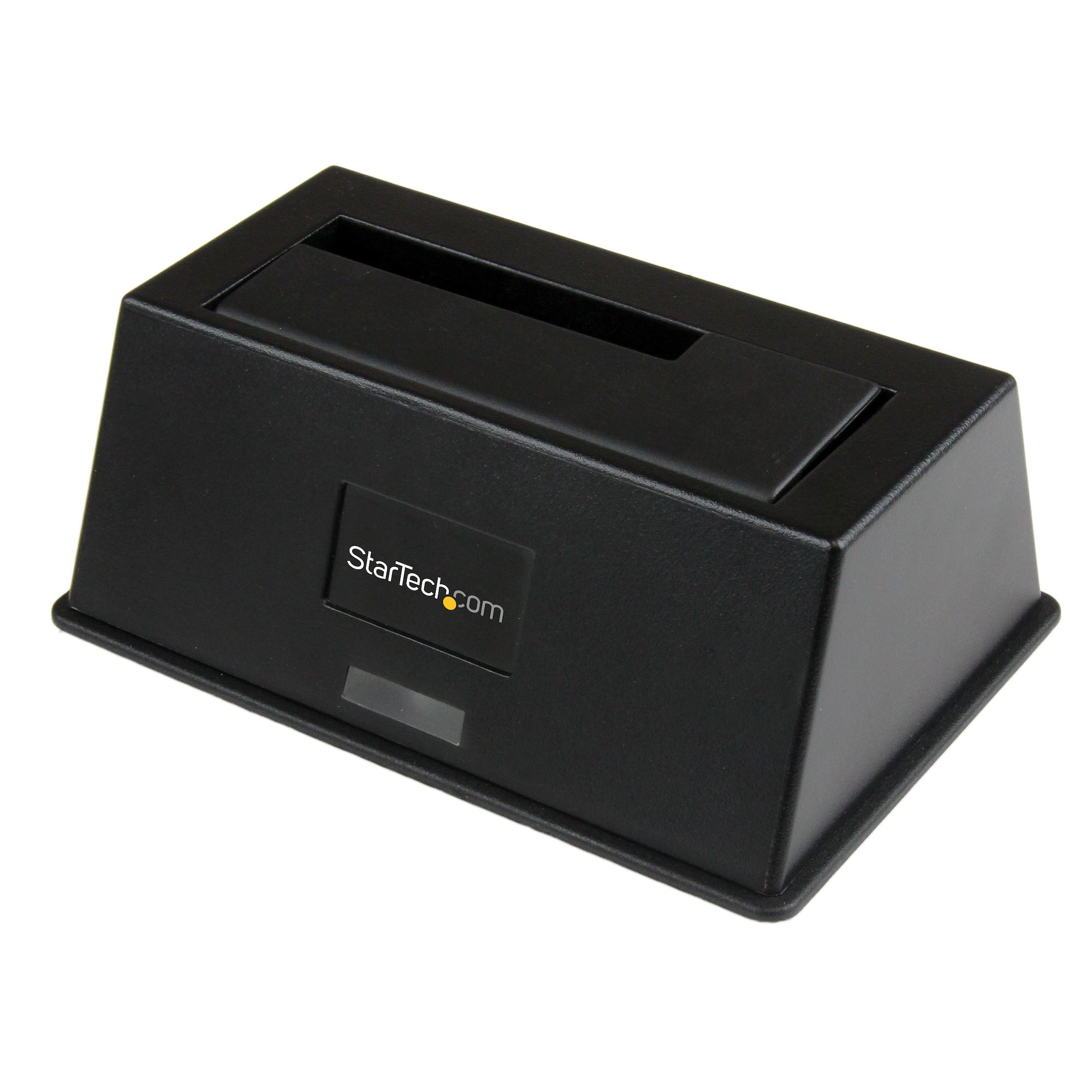

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock
The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.
With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | SDOCKU33BV |
| HSSL part number | UK-STT-SDOCKU33BV |
| UPC / GTIN | 0065030855303 |
| Product type | Storage Drive Docking Stations |
| Hard drive | |
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Maximum data transfer rate | 6 Gbit/s |
| Plug and Play | Yes |
| LED indicators | Activity, Power |
| On/off switch | Yes |
| UASP support | Yes |
| Cooling | |
| Built-in fan | No |
| Power | |
| AC input voltage | 100-240 V |
| Output voltage | 12 V |
| Weight & dimensions | |
| Weight | 318 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Included power plug types | EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Chipset | ASMedia - ASM1053 - 6G |
| Compliance certificates | CE, RoHS |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-SDOCKU33BV.
