StarTech.com VGA Wall Plate Video Extender over Cat5 with Audio. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Operating voltage: 12 V, Current: 0.6 A. Dimensions (WxDxH): 42 x 105 x 38 mm. Package width: 62 mm, Package depth: 292 mm, Package height: 147 mm
Extend VGA video over Cat5 with tidy professional wall mount installation

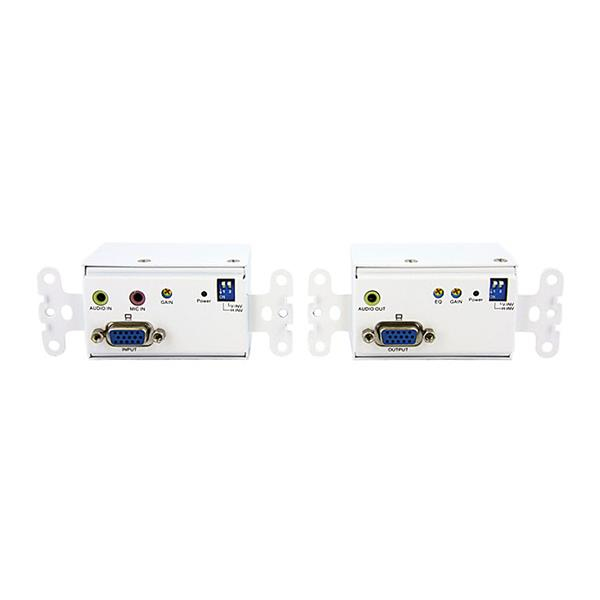

This VGA Wall Plate Cat5 Video with Audio Extender kit includes both transmitter and receiver units, allowing you to make out-of-the-way connections from a VGA video and audio source to a remote monitor location. The transmitter and receiver wall plates can be placed in a wall or ceiling gang for a cleaner, more professional VGA installation, supporting connection distances up to a maximum of 300m (950ft).
"I would highly recommend this to anyone or any business looking for an easy and more efficient way to present."— bayreviews.comOffering maximum versatility and convenience, the VGA wall plate kit is easy to install; simply wallmount the transmitter unit near the intended VGA source, then wallmount the receiver unit near the monitor/projector. The VGA transmitter and receiver units can then be linked using standard Cat5e or Cat6 cable to provide a high quality video and stereo audio extension while concealing the cable for a neatly placed installation.

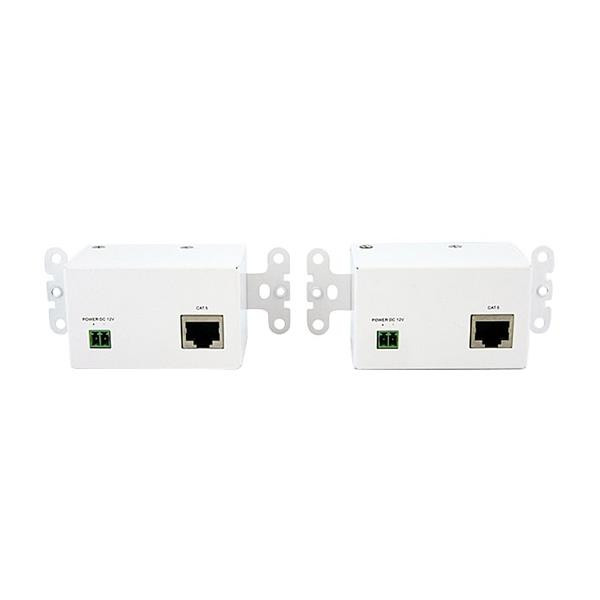

Both VGA transmitter and receiver units use a 12V DC terminal block connector behind the unit that offers a more secure and economical installation; using Cat5/Cat6 cable to extend the VGA signal offers a cost-effective solution based on the broad availability of networking cable which is far more flexible than VGA cable, not to mention less expensive.
Unlike some video extension systems, our VGA extender wall plates also allow you to make use of an existing networking cable (Cat5, Cat6) infrastructure, eliminating the need to re-run cable in the event of an upgrade from VGA to another video standard, by simply swapping out the wall plates.
The StarTech.com Advantage
- Integrators and installers now have the choice of bulk rolls for custom length on field termination or using set lengths for quicker installs - Use existing in-wall Cat5 cabling and save time for installations. Simply plug in the Cat5 cable into the RJ-45 connector and the cable is locked in - Transmitter and Receiver wall plates can be purchased separately and are fully compatible with our UTPEA (VGA and Audio) series - Save time and unnecessary expense by using existing in-wall Cat5 cabling to extend VGA video and audio
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | STUTPWALLA |
| HSSL part number | UK-STT-STUTPWALLA |
| UPC / GTIN | 0065030836135 |
| Product type | AV Extenders |
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 300 m |
| LED indicators | Power |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 800 x 600 (SVGA) |
| Product colour | White |
| Ports & interfaces | |
| RJ-45 input ports | 2 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 12 V |
| External power adapter | Yes |
| Current | 0.6 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 42 x 105 x 38 mm |
| Packaging content | |
| Manual | Yes |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-STUTPWALLA.
