Zebra ZT230. Print technology: Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired, USB port. Product colour: Black, White

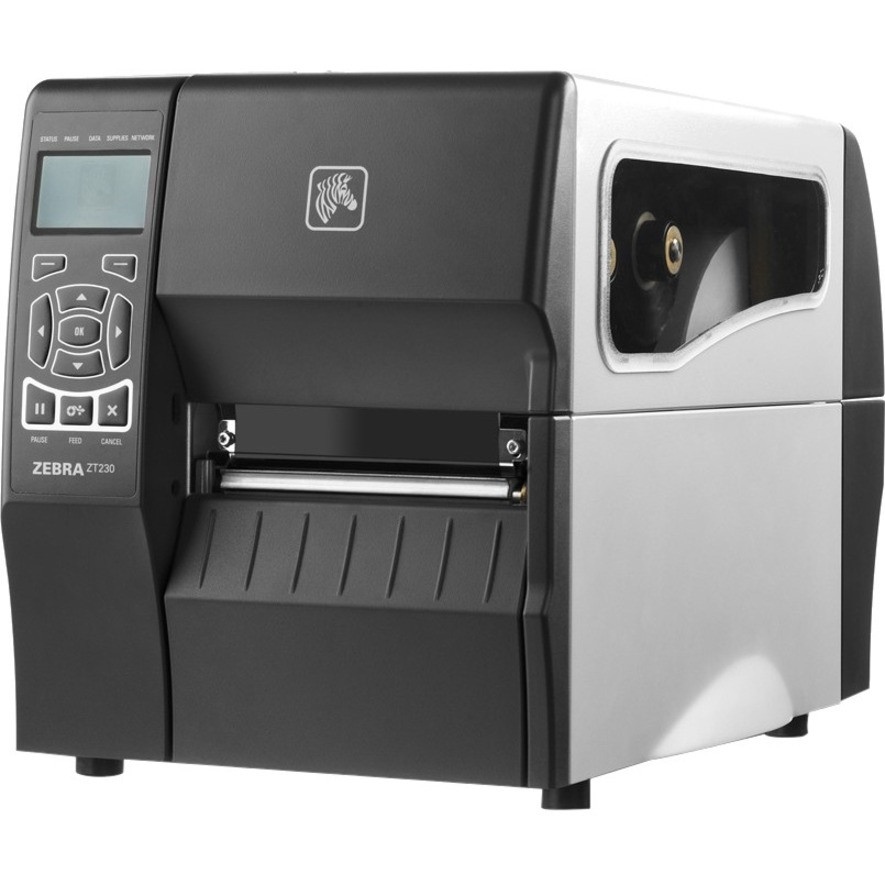

ZT230 Industrial Printer
The durability of a metal frame and cover with an icon based LCD graphical user interface and larger ribbon capacity for long lasting use in demanding environments.
Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
SIMPLIFIED OPERATION AND OUTSTANDING VALUE
The ZT200 series is designed to simplify and shorten servicing and consumable replacement time. The easy tool-less platen and print head removal makes it easy for operators to maintain the printer. The side loading supplies path enables simplified media and ribbon insertion and color coded media path clearly directs media and ribbon threading.
COMPACT FOOTPRINT FITS WHERE SPACE IS AT A PREMIUM
The ZT200 Series printer’s compact design, when closed and opened, fits easily in constrained work areas. The ergonomic Bi-fold door requires only 4” (102mm) of door swing room. This reduces the printer height making it ideal for placement under a shelf or against another item.
Specifications
| General | |
|---|---|
| Brand | Zebra |
| Manufacturer part number | ZT23043-D21000FZ |
| HSSL part number | UK-ZEB-ZT23043-D21000FZ |
| Product type | Label Printers |
| Printing | |
| Print technology | Thermal transfer |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 152 mm/sec |
| Maximum printing width | 10.4 cm |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum label width | 11.4 cm |
| Maximum label length | 0.991 m |
| Media thickness | 0.076 - 0.025 mm |
| Maximum media length | 185.4 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcodes | 1D, 2D, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, TLC39, UPC-A, UPC-E |
| Certification | IEC 60950, EN 55022 B, EN 55024, EN 61000-3-2, EN 61000-3-3, cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S Mark, CCC, GOST-R, KCC, BSMI |
| Design | |
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 242 mm |
| Depth | 432 mm |
| Height | 277 mm |
| Weight | 9.1 kg |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ZEB-ZT23043-D21000FZ.
Additional information
Zebra Barcode Printer - ZT23043-D21000FZ
The ZT230 Industrial label printer from Zebra has been designed for ease of use, versatility and outstanding value. Zebra’s most affordable industrial printer, the ZT230 incorporates extensive customer feedback and the learnings from legacy printers—creating innovative printers with a space saving design. Featuring Zebra’s Link-OS® environment, the ZT200 Series provides users with effortless setup, intuitive operation and ease of service and maintenance. Ideal for manufacturing, transportation & logistics, healthcare, retail, and government, The ZT230 printer offers a streamlined design and smaller footprint that most industrial printers. Multiple connectivity options, including Parallel, 10/100 Ethernet, and 802.11a/b/g/n wireless provide options to integrate into any environment. Icon-based status LEDs provide immediate and easily visible printer status to allow you supreme efficiency in your printing operations.
The ZT200 series is designed to simplify and shorten servicing and consumable replacement time. The easy tool-less platen and print head removal makes it easy for operators to maintain the printer. The side loading supplies path enables simplified media and ribbon insertion and colour coded media path clearly directs media and ribbon threading.
The ZT200 Series printer's compact design, when closed and opened, fits easily in constrained work areas. The ergonomic Bi-fold door requires only 4" (102mm) of door swing room. This reduces the printer height making it ideal for placement under a shelf or against another item.
