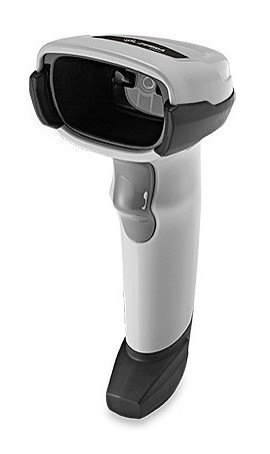

Zebra DS2278. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB. Product colour: White, International Protection (IP) code: IP42. Power source type: Battery, DC, Battery life: 84 h, Input voltage: 4.5 - 5.5 V. Weight: 214 g, Width: 66 mm, Depth: 90 mm
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
EASY TO DEPLOY
Deployment couldn’t be simpler. The DS2200 Series is pre-configured and ready to use right out of the box. Just plug the DS2200 Series into your POS and our auto-host detect cables will automatically identify the interface and connect the imager for you. And if you want to customize your settings, our complimentary 123Scan software tool is so intuitive than even a first time user can easily create a single programming barcode that allows you to configure devices with one scan.
EASY TO USE
The DS2200 Series is so easy to use, chances are your workers won’t even need training. With Zebra’s PRZM software decode algorithms, omni-directional scanning, a patent-pending intuitive aimer, an unsurpassed scanning range and more, the DS2200 Series provides workers with best-in-class first time, every time scanning with point and shoot simplicity — regardless of barcode condition. And with a Bluetooth model that offers the easiest pairing on the planet and a guaranteed 14 hours of power, workers get a superior wireless experience.
EASY TO MANAGE
Management is simple — no experienced IT personnel required. Our no-cost tools make it easy to manage scanners in all your locations and develop a custom scanning application to best meet your specific business needs. The long-lasting battery in the cordless DS2278 will likely never need to be replaced during the lifecycle of the scanner, eliminating the need to purchase and manage a battery pool. And with Zebra’s proprietary Wi-Fi Friendly Mode, you can confidently deploy DS2278 cordless models without worrying about interference with your wireless local area network (WLAN).
Specifications
| General | |
|---|---|
| Brand | Zebra |
| Manufacturer part number | DS2278-SR6UMC00AZW |
| HSSL part number | UK-ZEB-DS2278-SR6UMC00AZW |
| UPC / GTIN | 8596375044463 |
| Product type | Barcode Readers |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, USB |
| USB version | 2.0 |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Built-in display | No |
| Product colour | White |
| Power | |
| Power source type | Battery, DC |
| Number of batteries supported | 1 |
| Battery life | 84 h |
| Input voltage | 4.5 - 5.5 V |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 90 mm |
| Height | 175 mm |
| Weight | 214 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2400 mAh |
| Technical details | |
| Compliance certificates | RoHS |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ZEB-DS2278-SR6UMC00AZW.
Additional information
Zebra DS2278 Handheld Barcode Scanner - Wireless Connectivity - 1D, 2D - Imager - Bluetooth - USB - Nova White - DS2278-SR6UMC00AZW
Streamline your operations with the Zebra DS2278, a versatile handheld barcode scanner designed to enhance productivity in retail, healthcare, warehousing, and more. This intuitive device offers seamless wireless connectivity and exceptional scanning performance, making it the ideal solution for businesses seeking reliable and efficient data capture.
Unlock the Power of Effortless Scanning: The DS2278 quickly and accurately captures 1D and 2D barcodes, even from damaged or poorly printed labels. Its advanced imaging technology minimizes errors and reduces processing time, allowing your team to work smarter, not harder. Enjoy the freedom of wireless connectivity through Bluetooth and USB, enabling real-time data transmission and eliminating cable clutter.
Key Features and Benefits:
- Wireless Freedom: Bluetooth and USB connectivity options offer flexibility and mobility.
- Versatile Performance: Scans both 1D and 2D barcodes with ease.
- Durable Design: Built to withstand the rigors of daily use in demanding environments.
- Intuitive Operation: Easy to use, minimizing training time and maximizing efficiency.
- Stylish and Practical: Available in a sleek Nova White finish.
- Improved Accuracy: Advanced imaging technology reduces errors and improves data integrity.
- Increased Productivity: Fast scanning speeds accelerate workflows and boost overall efficiency.
