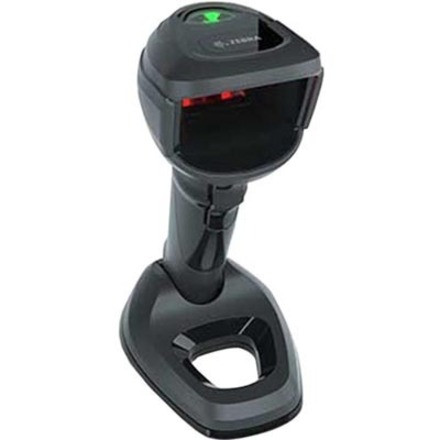

Zebra DS9908-SR. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-485. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Input voltage: 5 V. Weight: 330 g, Width: 94 mm, Depth: 132 mm
IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LAB
Barcodes found in the lab can be challenging for a general purpose scanner. That’s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.
SCAN IT ALL
High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.
TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.
UNRIVALED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
Specifications
| General | |
|---|---|
| Brand | Zebra |
| Manufacturer part number | DS9908-SR00004ZZWW |
| HSSL part number | UK-ZEB-DS9908-SR00004ZZWW |
| UPC / GTIN | 8596375198050 |
| Product type | Barcode Readers |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Wavelength | 528 nm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-485 |
| Performance | |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Built-in display | No |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Product colour | Black |
| Power | |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 132 mm |
| Height | 203 mm |
| Weight | 330 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ZEB-DS9908-SR00004ZZWW.
Additional information
DS9900 Series Corded Hybrid Imager for Retail
BOOST PRODUCTIVITY AT THE POINT OF SALE WITH THE ULTIMATE IN PERFORMANCE AND DESIGN
The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect - short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra 's award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra 's industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID
to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager - the ultimate in performance and design.
Industry-best performance
Scan it all with virtually no exceptions
The DS9900 Series combines an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra 's exclusive PRZM Intelligent Imaging technology for unparalleled performance on 1D, 2D and Digimarc® barcodes. Problematic barcodes won't slow down your checkout lanes. The DS9900 Series can instantly capture dense, poorly printed, damaged, crinkled, faded, distorted, low-contrast, and glossy printed barcodes, as well as electronic barcodes on dimly lit mobile phone displays
Rapid-fire scanning to keep your lines moving
With the widest field of view in its class and an advanced illumination system, the DS9900 Series provides the near instant barcode capture you need to keep the busiest checkout lines moving. You get one of the industry's top first-pass read rates - up to 240 in./610 cm per second. A large field of view makes presentation scanning easier than ever, enabling associates to focus on your shoppers rather than positioning items.
Bring RFID to your point of sale
If you are already benefiting from RFID in your supply chain, you can close the RFID loop by capturing RFID-tagged merchandise at the POS with the RFID model. Checkouts are easier than ever, since associates can scan multiple items at once without line of sight. Capturing RFID tags provides the real-time inventory visibility needed for timely re-ordering and trending analysis. The reader operates with just 5 VDC and does not require an external power supply. And complimentary RFID data conversion software lets you read RFID tags without modifying your existing POS application.
