StarTech.com 2x2 VGA Matrix Video Switch Splitter with Audio. Video port type: VGA, Video out: 2x VGA. Maximum resolution: 1920 x 1440 pixels, Product colour: Silver, Maximum operating distance: 95 m. AC input voltage: 115 V, Output voltage: 12 V. Dimensions (WxDxH): 130 x 75 x 42 mm, Weight: 450 g. Package width: 156 mm, Package depth: 245 mm, Package height: 68 mm
Share two distinct VGA inputs and audio source signals between two displays

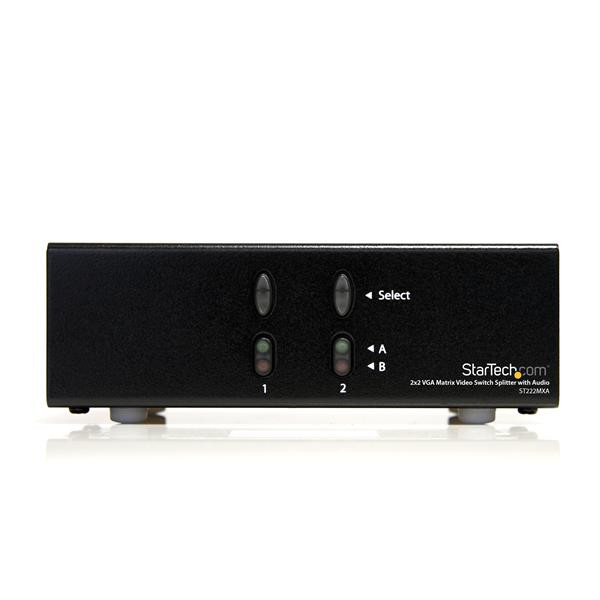

The ST222MXA 2x2 VGA Matrix Switcher/Splitter allows you to share 2 distinct VGA inputs (as well as a corresponding audio source), between 2 independent displays or projectors. Providing convenient push-button control, the VGA Matrix Switcher/Splitter allows each of the 2 input VGA signals and the corresponding audio, to be switched individually - meaning that you can have a different source showing on each display, or one source showing on both, offering maximum flexibility and control. To ensure optimized VGA distribution and signal management over longer distance signal transmissions, the ST222MXA VGA Matrix Switch features a built-in signal booster that facilitates installation of displays at distances of up to 213-feet (65 meters) away from the source device, while maintaining flawless signal integrity. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Matrix switching lets you use the device as a video splitter or switch with the ability to toggle on/off signals, giving you full control of screen content - Built-in signal amplifier lets you extend your connection by up to 210 feet
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | ST222MXA |
| HSSL part number | UK-STT-ST222MXA |
| UPC / GTIN | 0065030841825 |
| Product type | Video Splitters |
| Ports & interfaces | |
| Video port type | VGA |
| Video out | 2x VGA |
| Video ports quantity | 4 |
| Audio ports quantity | 4 |
| Features | |
| Product colour | Silver |
| Maximum resolution | 1920 x 1440 pixels |
| Full HD | No |
| Maximum operating distance | 95 m |
| Bandwidth | 250 MHz |
| HD-Ready | No |
| Power LED | Yes |
| Certification | DDC, DDC2, DDC2B |
| Network | |
| Ethernet LAN | No |
| Power | |
| AC input voltage | 115 V |
| Output voltage | 12 V |
| Weight & dimensions | |
| Dimensions (WxDxH) | 130 x 75 x 42 mm |
| Weight | 450 g |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-ST222MXA.
