StarTech.com 2x4 High Resolution Matrix VGA Video Switch. Product type: AV matrix switcher, Maximum resolution: 1920 x 1440 pixels. Housing colour: Black, Certification: REACH, CE, FCC, TAA. Power consumption (max): 12 W, Power supply location: External, Output current: 1000 mA. Width: 75 mm, Depth: 200 mm, Height: 42 mm
Share two distinct VGA input source signals between four displays or projectors

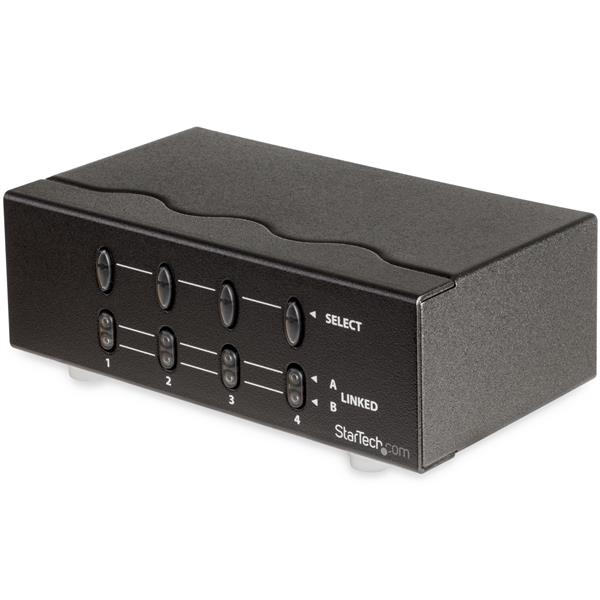

This 2x4 Matrix VGA Video Switch allows users to share two separate VGA input signals between up to four monitors.
Providing convenient push button control, the VGA Matrix Switcher/Splitter allows both of the VGA input signals to be switched/split for display on any of the connected VGA displays (up to four) - in turn, ensuring centralized control of the VGA signal output destination at the push of a button.
To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210ft away from the source computer, while maintaining flawless signal integrity. The switcher/splitter offers high video bandwidth (250 Mhz) capability, providing display resolutions of up to 1920 x 1440 pixels.
Designed to provide maximum control while saving space and eliminating clutter, this VGA Matrix splitter/switcher can be used as a standalone solution or rackmounted using the (included) ear-mounts.
The StarTech.com Advantage
- Allows you to connect 2 computers to 4 monitors and switch video signals to any desired display - Provides high quality resolution of up to 1920 x 1440 pixels - Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | ST224MX |
| HSSL part number | UK-STT-ST224MX |
| UPC / GTIN | 0065030805247 |
| Product type | Matrix Switchers |
| Features | |
| Product type | AV matrix switcher |
| Maximum resolution | 1920 x 1440 pixels |
| Design | |
| Housing colour | Black |
| LED indicators | Yes |
| Certification | REACH, CE, FCC, TAA |
| Display | |
| Built-in display | No |
| Ports & interfaces | |

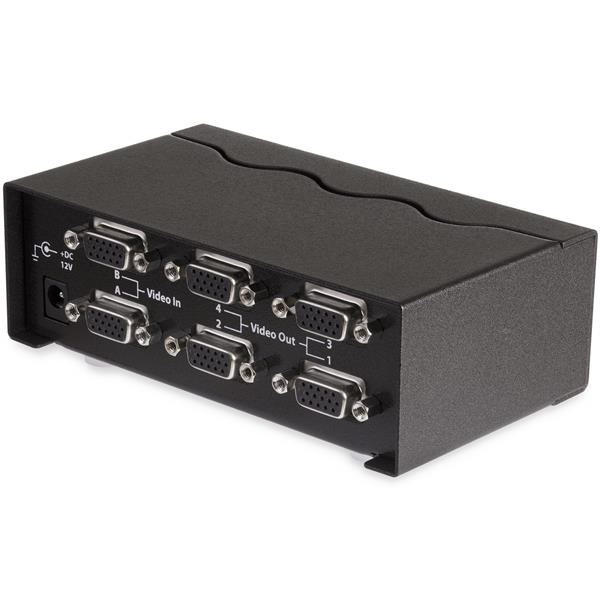

| VGA (D-Sub) input ports | 2 |
| VGA (D-Sub) output ports | 4 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 12 W |
| Power supply location | External |
| Output current | 1000 mA |
| Output voltage | 12 V |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 200 mm |
| Height | 42 mm |
| Weight | 471 g |
| Package width | 58 mm |
| Package depth | 258 mm |
| Package height | 196 mm |
| Package weight | 749 g |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-ST224MX.
