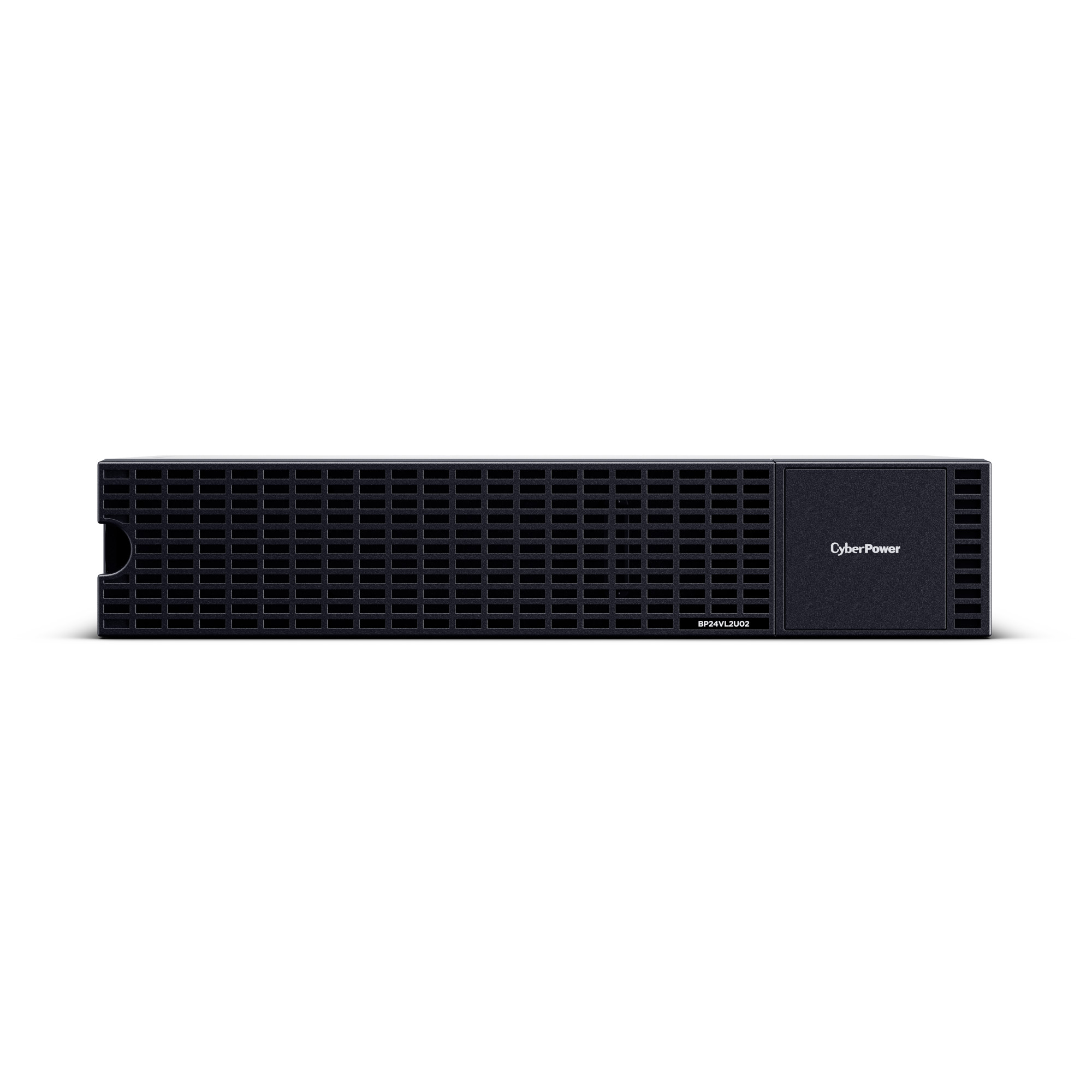

The CyberPower BP24VL2U02 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL750RM and OL1KRM. The BP24VL2U02 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
Technical specifications
| General — Amperage | 50 A |
|---|---|
| General — DC Voltage | 24 VDC |
| Battery Quantity | 4 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Battery — Built-in Charger | Yes |
| Battery — Expansion Ready (Daisy-Chain) | Yes |
| Battery — Replacement Battery Cartridge | RB1270X2H |
| Battery — Replacement Battery Cartridge Quantity | 2 |
| Battery — Typical Recharge Time | 4 Hours (0% to 90% charged) |
| Battery — User Replaceable Battery | Yes |
| Input — Circuit Breaker | 10 A |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 100 VAC - 125 VAC |
| Input — Nominal Input Voltage | 120 VAC |
| Physical — Color | Silver |
| Physical — Material of Construction | Metal |
| Physical — Mounting Hardware | Yes |
| Physical — Rack Height | 2U |
| Dimensions — Physical Dimensions - (WxHxD) (cm) | 43.31 x 8.66 x 28.5 (cm) |
| Dimensions — Physical Dimensions - (WxHxD) (in) | 17.05 x 3.41 x 11.22 (in) |
| Dimensions — Physical Dimensions - (WxHxD) (mm) | 433 x 87 x 285 (mm) |
| Dimensions — Physical Weight (kg) | 15.6 |
| Dimensions — Physical Weight (lb) | 34.39 |
| Dimensions - Shipping — Shipping - Weight (kg) | 19.4 |
| Dimensions - Shipping — Shipping - Weight (lb) | 42.77 |
Documentation
CyberPower BP24VL2U02 product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
