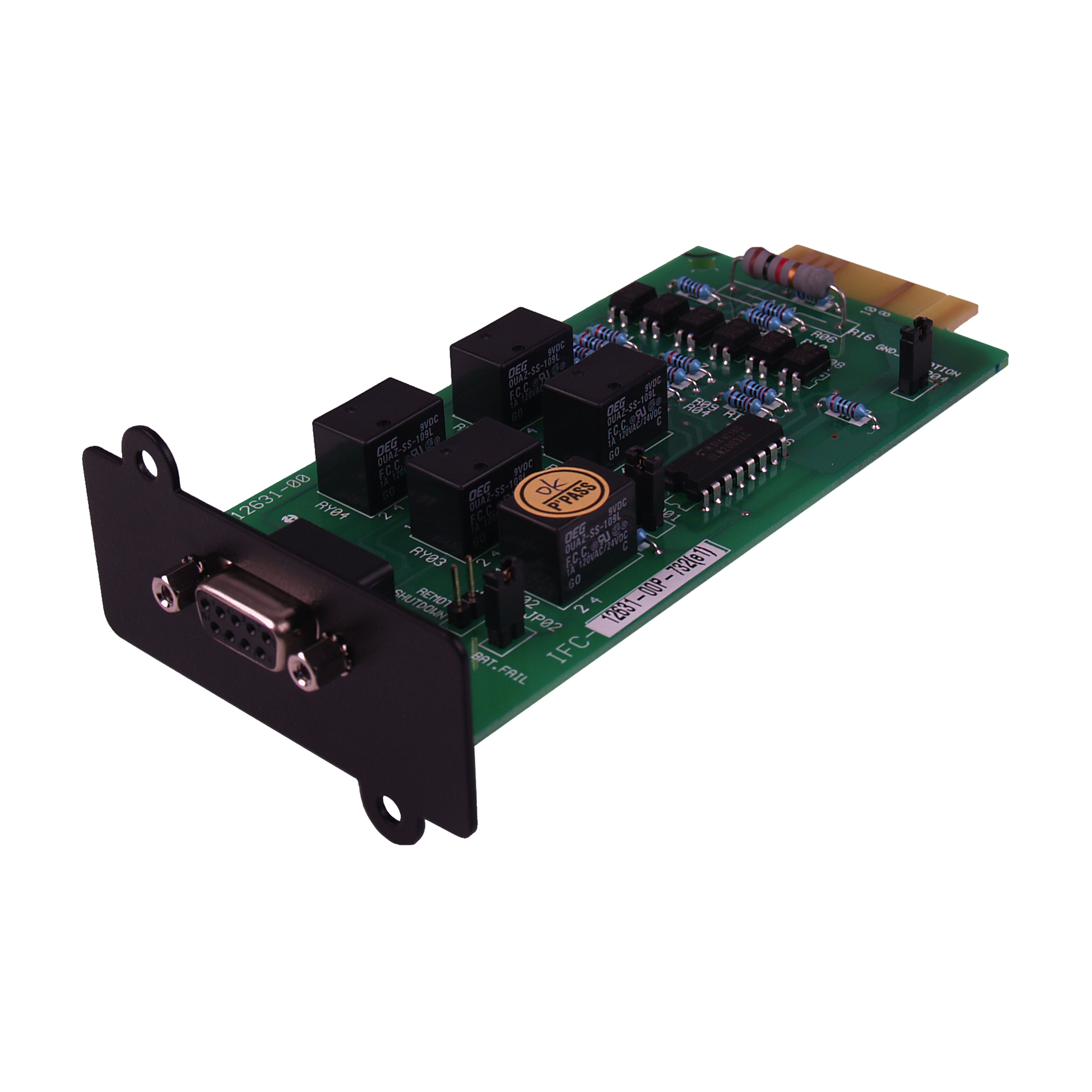

The COMMCARD300 from CyberPower is an internal communication/interface card for select UPS models (OL1000RMXL2U, OL1500RMXL2U, OL2000RMXL2U, and OL3000RMXL2U) which enables administrators to transmit data to a management system, programmable logic controller, or an interface utilizing a DB9 connection. It can also be configured as an Emergency Power Off interface.
Technical specifications
| Output — USB Charge Port | No |
|---|---|
| Management & Communications — Hardware Connection Port | Serial |
| Management & Communications — Protocols | TCP/IP, UDP, SNMP/HTTP, BOOTP and DHCP |
| Dimensions — Physical Dimensions – (WxHxD) (cm) | 6.88 x 3.78 x 13.69 (cm) |
| Dimensions — Physical Dimensions – (WxHxD) (in) | 2.71 x 1.49 x 5.39 (in) |
| Dimensions — Physical Dimensions – (WxHxD) (mm) | 69 x 38 x 137 (mm) |
| Dimensions — Physical Weight (kg) | 0.09 |
| Dimensions — Physical Weight (lb) | 0.2 |
| Dimensions – Shipping — Shipping – Weight (kg) | 0.24 |
| Dimensions – Shipping — Shipping – Weight (lb) | 0.53 |
| Dimensions – Shipping — Shipping Dimensions – (WxHxD) (cm) | 22.86 x 3.81 x 15.24 (cm) |
| Dimensions – Shipping — Shipping Dimensions – (WxHxD) (in) | 9 x 1.5 x 6 (in) |
| Dimensions – Shipping — Shipping Dimensions – (WxHxD) (mm) | 228.6 x 38.1 x 152.4 (mm) |
| Environmental — Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Environmental — Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Environmental — Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Environmental — Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Environmental — Storage Relative Humidity | 0 – 95% (non-condensing) |
| Environmental — Storage Temperature | 14 – 122 °F (-10 – 50 °C) |
| Compatibility — Models | OL1000RMXL2U, OL1500RMXL2U, OL2000RMXL2U, OL3000RMXL2U |
| Compatibility — UPS Models | OL1000RMXL2U, OL1500RMXL2U, OL2000RMXL2U, OL3000RMXL2U |
| Certifications — Environmental | RoHS Compliant |
| Certifications — Safety | FCC Class A CE |
| Warranty — Product Warranty | 3 Year Limited Warranty |
Documentation
CyberPower COMMCARD300 product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
