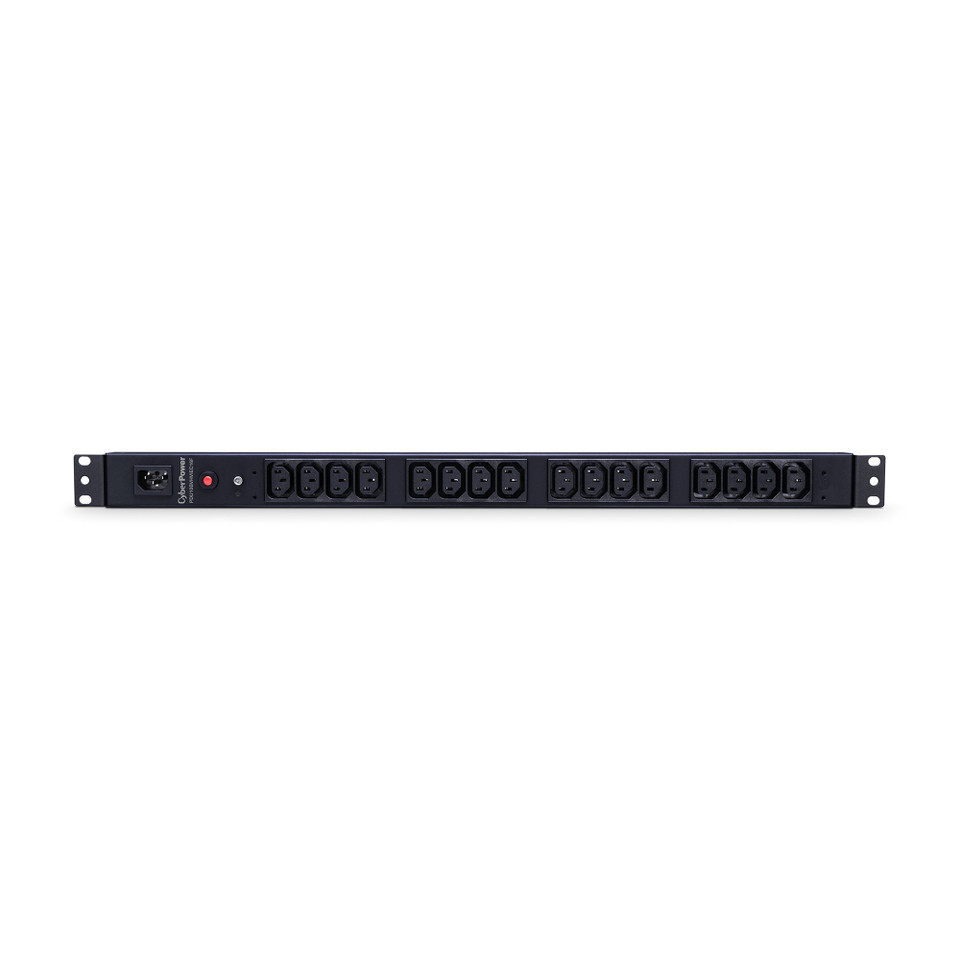

The CyberPower PDU10BVHVIEC16F, a 16-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 10A output. It distributes power to 16 IEC-320 C13 receptacles from a single IEC-320 C14 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU10BVHVIEC16F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Technical specifications
| Input — Cord Length | 10 ft (3.0 m) |
|---|---|
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Input — Maximum Input Current | 10A (Derated to 8A) |
| Input — Plug Style | Straight |
| Output — Nominal Output Voltage | 200 – 230 VAC |
| Output — Outlet Type | 16 – IEC-320 C13 |
| Output — Outlets – Front | 16 |
| Output — Outlets – Rear | 0 |
| Output — Outlets – Total | 16 |
| Output — Overload Protection | 10A |
| Output — USB Charge Port | No |
| Physical — Adjustable Mounting Brackets | 3 sets (L-Short, L-Long, Flat) |
| Physical — Color | Black |
| Physical — Cord Retention Tray/Cord Organizers | Yes |
| Physical — External Site Ground Pin | Yes |
| Physical — Form Factors Supported | Horizontal or Vertical Wallmount Horizontal or Vertical Mount in a Variety of Other Surface Types |
| Physical — Material of Construction | Metal |
| Physical — Rack Height | 0U |
| Physical — Style | Rackmount Vertical Rackmount Wallmount/Under-Counter |
| Dimensions — Physical Dimensions – (WxHxD) (cm) | 4.45 x 60.96 x 3.81 (cm) |
| Dimensions — Physical Dimensions – (WxHxD) (in) | 1.75 x 24 x 1.5 (in) |
| Dimensions — Physical Dimensions – (WxHxD) (mm) | 44 x 610 x 38 (mm) |
| Dimensions — Physical Weight (kg) | 1.36 |
| Dimensions — Physical Weight (lb) | 3 |
| Dimensions – Shipping — Shipping – Weight (kg) | 3.63 |
Documentation
CyberPower PDU10BVHVIEC16F product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
