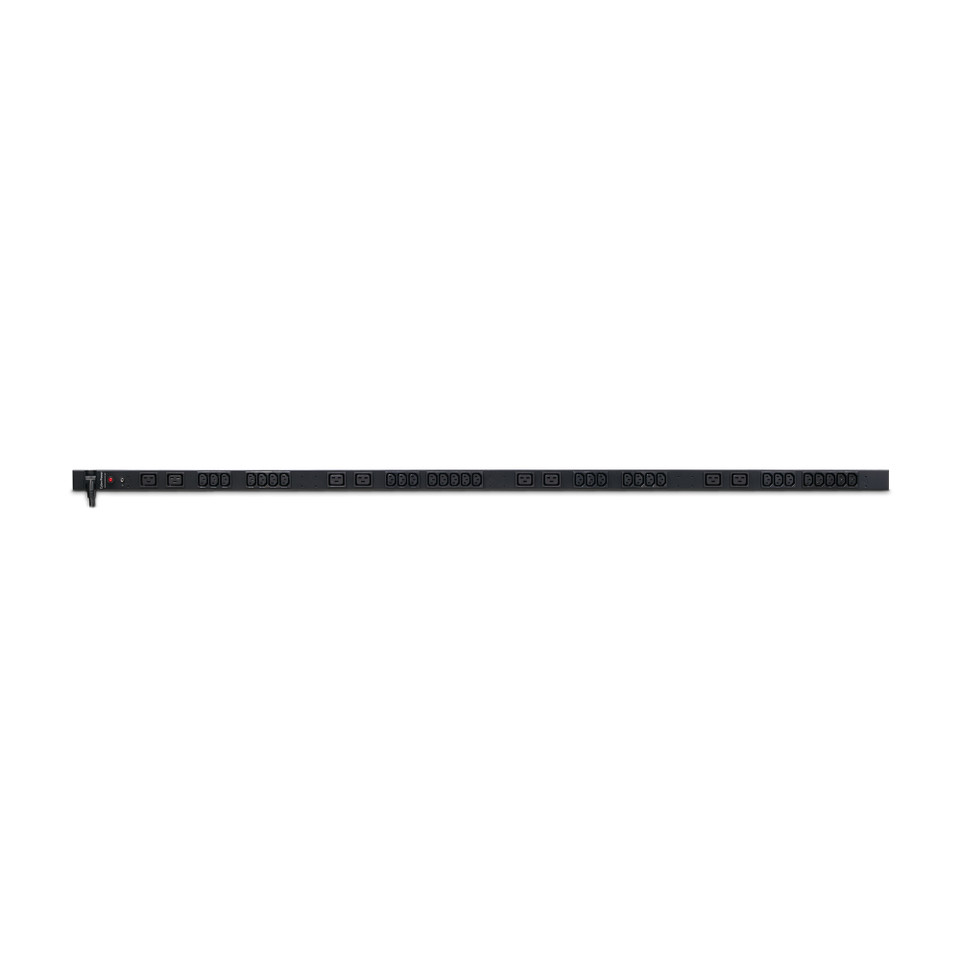

The CyberPower PDU20BVHVT38F, a 38-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 30 IEC-320 C13, 8 IEC-320 C19 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVT38F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. It comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Technical specifications
| Input — Cord Length | 10 ft (3.0 m) |
|---|---|
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA L6-20P |
| Input — Maximum Input Current | 20A (Derated to 16A) |
| Input — Plug Style | Straight (Twist Lock) |
| Output — Nominal Output Voltage | 200 – 230 VAC |
| Output — Outlet Type | 8 – IEC-320 C19 30 – IEC-320 C13 |
| Output — Outlets – Front | 38 |
| Output — Outlets – Rear | 0 |
| Output — Outlets – Total | 38 |
| Output — Overload Protection | 16A |
| Output — USB Charge Port | No |
| Physical — Adjustable Mounting Brackets | 3 sets (L-Short, L-Long, Flat) |
| Physical — Color | Black |
| Physical — Cord Retention Tray/Cord Organizers | Yes |
| Physical — External Site Ground Pin | Yes |
| Physical — Form Factors Supported | Horizontal or Vertical Wallmount Racks Horizontal or Vertical Mount in a Variety of Other Surface Types |
| Physical — Rack Height | 0U |
| Physical — Style | Rackmount Vertical Rackmount Wallmount/Under-Counter |
| Dimensions — Physical Dimensions – (WxHxD) (cm) | 4.45 x 177.8 x 3.81 (cm) |
| Dimensions — Physical Dimensions – (WxHxD) (in) | 1.75 x 70 x 1.5 (in) |
| Dimensions — Physical Dimensions – (WxHxD) (mm) | 44 x 1778 x 38 (mm) |
| Dimensions — Physical Weight (kg) | 4.54 |
| Dimensions — Physical Weight (lb) | 10 |
| Environmental — Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Environmental — Operating Relative Humidity | 0 – 95 % (non-condensing) |
Documentation
CyberPower PDU20BVHVT38F product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
