EnGenius SFP Module 10G Single-Mode Fiber Tx:1330nm Rx:1270nm BiDi,DDM 20km. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Grey. Input voltage: 3 - 3.6 V, Maximum voltage: 3.6 V. Compliance certificates: RoHS. Width: 14 mm, Depth: 57.5 mm, Height: 10.8 mm

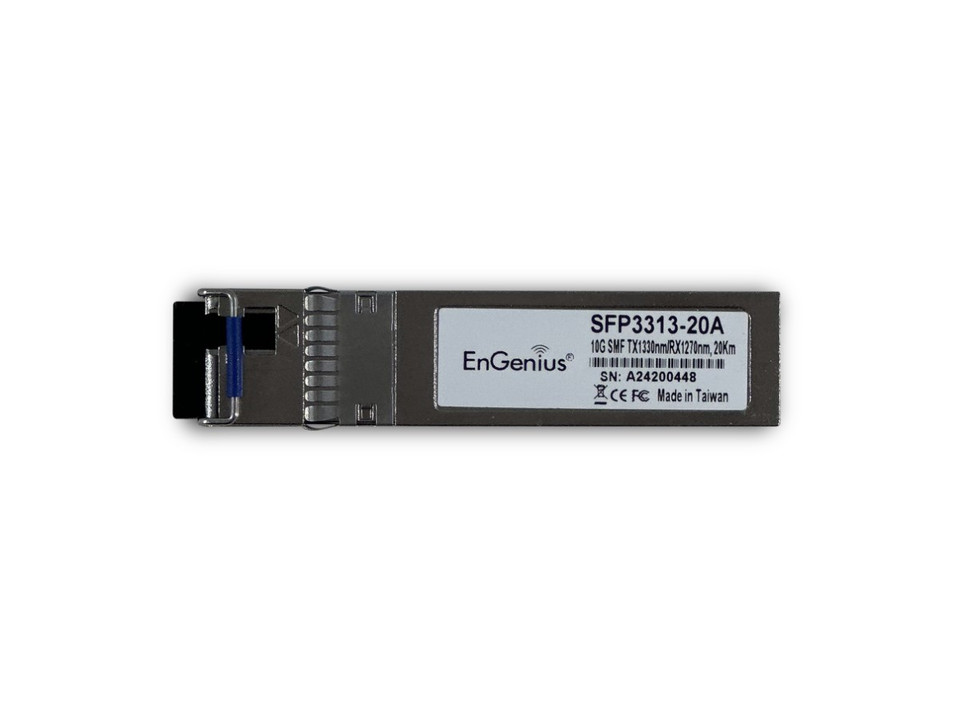

EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20,000m, ideally suited for data centers, enterprise and storage area networks.
Specifications
| General | |
|---|---|
| Brand | EnGenius |
| Manufacturer part number | SFP3313-20A |
| HSSL part number | UK-ENG-SFP3313-20A |
| UPC / GTIN | 4713361935855 |
| Product type | Network Transceiver Modules |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Networking standards | IEEE 802.3az |
| Features | |
| Product colour | Grey |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3 - 3.6 V |
| Maximum voltage | 3.6 V |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57.5 mm |
| Height | 10.8 mm |
| Weight | 25 g |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ENG-SFP3313-20A.
Additional information
ENGENIUS 10G ETHERNET TRANSCEIVER, SINGLE MODE 20KM, SFP+
Specifications
| Manufacturer | EnGenius |
|---|---|
| Manufacturer part number | SFP3313-20A |
| Shipping weight | 0.1 lb |
| Product type | Hardware |
| UPC | 655216010581 |
