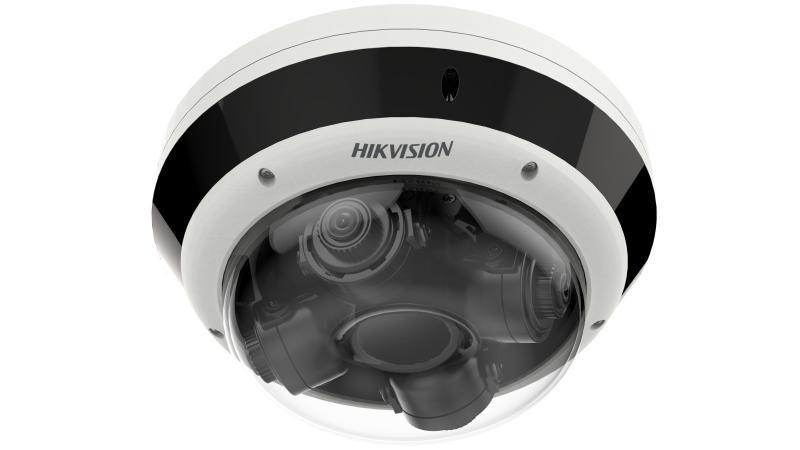

Hikvision 4-Directional Multisensor Network Camera - DS-2CD6D44G1-IZS(2.8-8mm)

• 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
• Each lens up to 4 MP, capturing clear images, and more details can be displayed on video wall
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67) and vandal proof (IK10)
• 3D DNR technology delivers clean and sharp images
• Audio and alarm interface available

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -60° to 60°,tilt: 10° to 90°,rotate: 0° to 350°

Lens

• Lens Type: Varifocal lens, motorized lens, 2.8 to 8 mm
• Focal Length & FOV: 2.8 to 8 mm, horizontal FOV 102.5° to 51.4°, vertical FOV 54.6° to 28.9°, diagonal FOV 122.7° to 59.2°
• Lens Mount: Ø14
• Focus: Semi-auto, Manual
• Aperture: F1.9

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

General

• Power;

12 VDC ± 20%, 1.2 A, max. 14.4 W,

24 VAC ± 20%, 0.92 A, max. 14.8 W,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.33 A to 0.24A, max. 14 W

• Dimension: Ø250 mm × 114.9 mm (Ø9.8" × 4.5")
• Package Dimension: 336 mm × 261 mm × 293 mm (13.2" × 10.3" × 11.5")
• Weight: Approx. 2.2 kg (4.9 lb.)
• With Package Weight: Approx. 3.9 kg (8.6 lb.)
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: flash log, password protection, one-key reset
