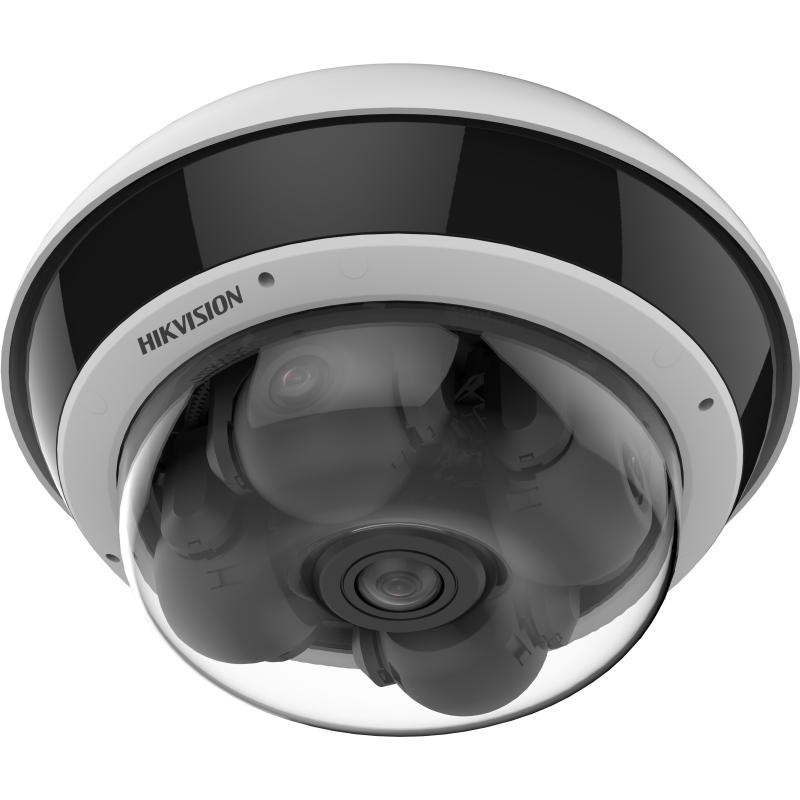

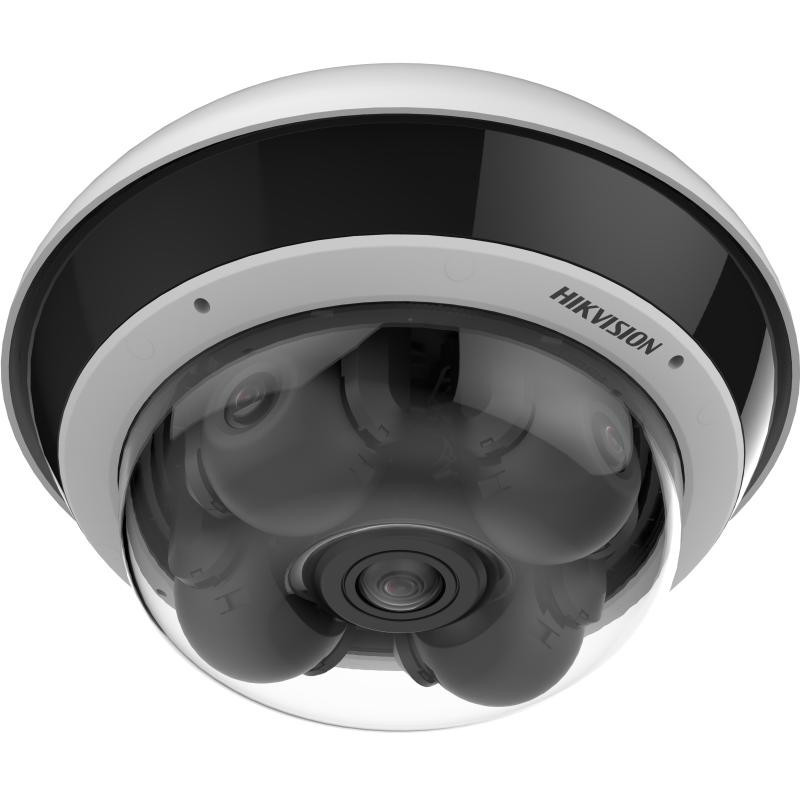

Hikvision 5-Directional Multisensor Network Camera - DS-2CD6D55G2-IZHS(2.8-8mm/2mm)

• 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
• Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67) and vandal proof (IK10)
• Human and vehicle target classification based on deep learning for up to 4 channels
• Unique PTRZ capability for efficient installation
• Audio and alarm interface available
• One more fixed lens to cover the area beneath the camera

Datasheet

Specifications

Camera

• Image Sensor: Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS
• Max. Resolution: 2560 × 1920
• Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 350°,tilt: 0° to 90°,rotate: -90° to 90°

Lens

• Lens Type: Varifocal lens, motorized lens, 2.8 to 8 mm,Fixed focal lens, 2 mm
• Focal Length & FOV;

  Varifocal :2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, diagonal FOV 129° to 61.3°

  Fixed:2mm, horizontal FOV 71.68°, vertical FOV 71.68°, diagonal FOV 99.16°

• Lens Mount: Ø14
• Focus: Varifocal: Semi-auto,Manual
• Aperture: Varifocal: F1.9; Fixed: F2.25

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

General

• Power;

12 VDC ± 20%, 1.8 A, max. 21.6 W,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.58 A to 0.43 A, max. 25 W

• Dimension: Ø290 mm × 148 mm (Ø11.42" × 5.8")
• Package Dimension: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
• Weight: Approx. 4.7 kg (10.36 lb.)
• With Package Weight: Approx. 8.0 kg (17.63 lb.)
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
