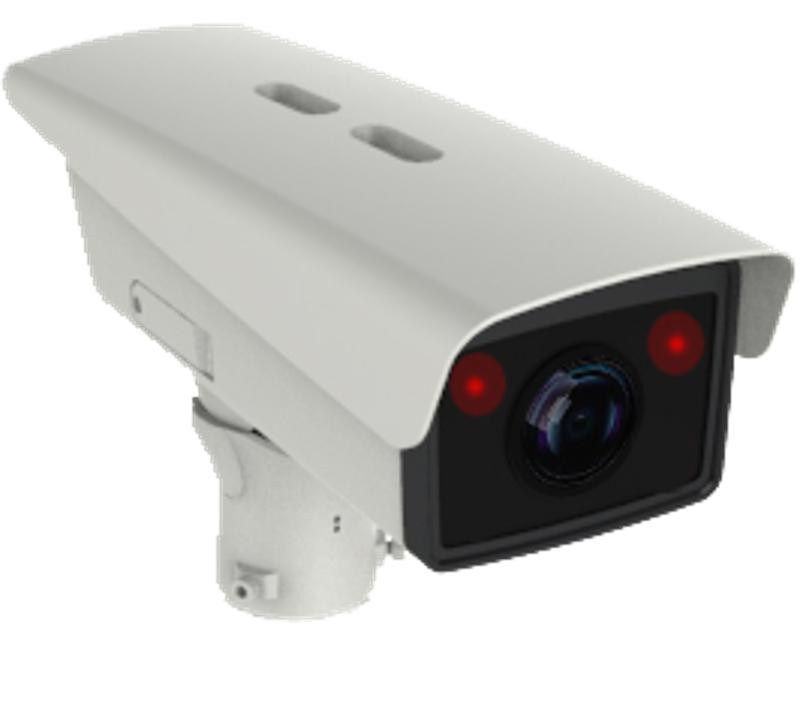

Hikvision 4MP ANPR Intelligent Entrance Video Unit - DS-TCG405-E

• 1/3" Progressive Scan CMOS
• Up to 2688 × 1520 resolution with real-time video
• 2x pics high-performance LEDs (integrated white light and IR)
• 3.1 to 6mm motorized vari-focal lens
• Support relay output to control vehicle barrier
• Support loop triggering or radar triggering
• Support multi-frame LPR
• Support dirty license plate recognition
• Support quick pass of multiple vehicles
• Support vehicle type, vehicle color and vehicle brand recognition
• Integrated shield, lights, TF Card (up to 512 G)
• Up to 100,000 allowlists and blocklists
• Offline control
• PoE (802.3af)
• One-touch focus
• Manual capture and ANPR

Specification

Camera

• Sensor Type: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination;

Color: 0.022Lux@(F1.9, AGC ON)

B/W: 0.011Lux@(F1.9, AGC ON)

• Shutter: 1/30 s to 1/100,000 s
• Day/Night Switch: Supported
• IR Cut Filter;

IR cut filter

Blue glass module to reduce ghost phenomenon

Lens

• Lens Type: 3.1 to 6 mm
• Aperture: 3.1 to 6 mm：F1.9
• Focal Length & FoV;

3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°

• Focus: Auto, Vari-focal lens, motor-driven lens

General

• Working Temperature & Humidity;

-25°C to 70°C (-13°F to 158°F)

90% or less (non-condensing)

• Power Supply: 12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA
• Working Consumption: 10 W Max.
• Dimensions: 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
• Weight: 3.25 kg (7.17 lb.)
• Weight (with Package): 4.3 kg (9.48 lb.)
• Dimensions (with Package): 480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)
• Storage Conditions;

Temperature: -20 °C to 70 °C (- 4°F to 158 °F)

Humidity: 95% (non-condensing)

• Startup and Operating Conditions;

Temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity: 95% (non-condensing)
