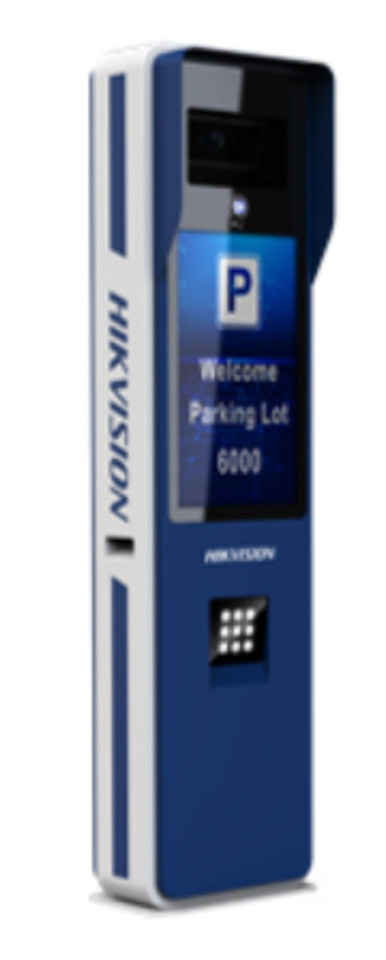

Hikvision All-in-one E&E machine with capture unit and LCD
- Placed in the entrance & exit of a parking lot, displays the information including available parking space, license plates, welcome greetings, time, etc.
- Displaying standard English characters, numeric characters, and even other foreign special characters
- Standard communication method is RJ45 - both online and offline modes are supported
- Control computer can dictate the content which is displayed
Specification
Installation
- Maintenance Mode: Front
Approval
- Protection: IP54
General
- Screen Border Material: Iron Frame Spraying Plastic（Dark armored glass for display part）
- Working Temperature and Humidity:
-30 to 60 °C
10% to 85% RH
- Power Supply: AC110-240V,50/60Hz,max0.5A
- Package Dimensions: 470mm*615mm*200mm
- Dimensions: 355 × 495 × 80 mm (13.98 × 19.47 × 2.56 inch)
- 8 kg (17.64 lb.)
- Weight (with Package): 9.6 kg (21.16 lb.)
- Storage Temperature and Humidity:
-40 to 70 °C
10% to 85% RH
- Average Consumption: 20W
- Max. Consumption: 70W
- Lifespan: 100000Hours
Display Screen:
- Pixel Pitch: P4.75
- Resolution: 64*64
- Display Content: GB2312 Character Set，16*16 Lattice Chinese Characters
- Screen Type: LED
- Display Colour: Red, Green, Yellow
- Number of Module: 2
- Viewing Angle: 120° (H) / 120° (V)
- Display Mode: instant, Left shift up forward, etc.
- Pixel Pitch Category: 4.75
- Colour Temperature: 3000k to 6000k
- Brightness Uniformity: ≥95%
- Colour Uniformity: ≥95%
- Contrast Ratio: 2000 : 1
- Luminance: 3500cd/m²
- Scanning Mode: 8S
- Communication Mode: TCP
