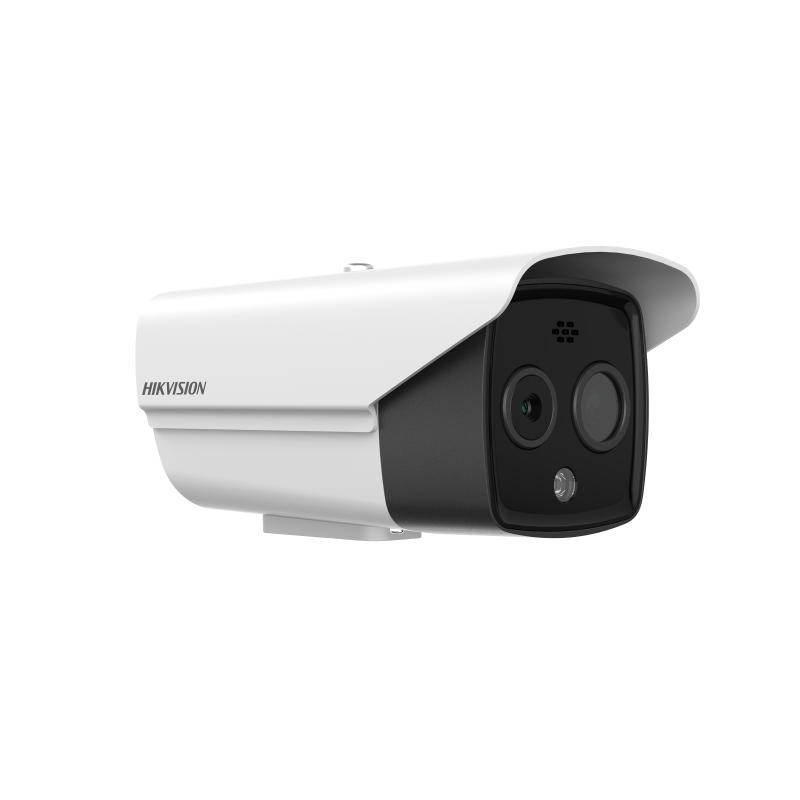

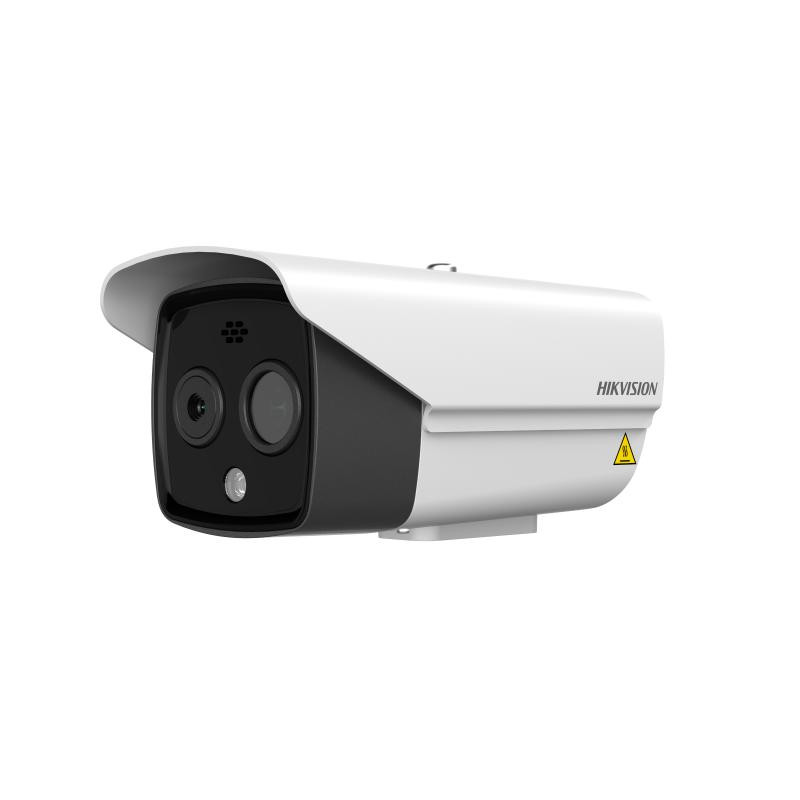

Hikvision DS-2TD2628-10/QA/GLT 4G Thermal & Optical Bi-spectrum Network Bullet Camera
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
- Water and dust resistant (IP67)
- Embedded audible alert and strobe light
- High quality detector with 10 years guarantee
- Built-in 32 GB eMMC storage
DatasheetSpecifications
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: 256 × 192
- Pixel Pitch: 12 μm
- Spectral Range: 8 μm to 14 μm
- NETD: ≤ 40 mK (@25° C,F# = 1.0)
- Focal Length: 9.7 mm
- Focus Mode: Athermalized
- IFOV: 1.24 mrad
- Field of View: 18.0° × 13.5° (H × V)
- Min. Focusing Distance: 3.5 m
- Aperture: F1.0
- Digital Zoom: ×2, ×4
Optical Module
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Resolution: 2688 × 1520
- Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed: 1 s to 1/100,000 s
- Focal Length: 8 mm
- Field of View: 39.4°(H) x22.1°(V)
- Aperture (Range): F1.6
- WDR: 120 dB
- White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night Mode: IR Cut Filter with Auto Switch
General
- Power Supply;
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
- Power Consumption;
12 VDC ± 25%: 0.83 A, Max. 10 W
PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.18 A, Max. 10 W
- Working Temperature/Humidity;
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level;
IP67 Standard ,IK10-rated housing
TVS 4000V lightning protection, surge protection, voltage transient protection
- Dimensions: 208.9 mm × 106 mm × 105.2 mm (8.22" × 4.17" × 4.14")
- Weight: 1332 g (2.94 lb)
