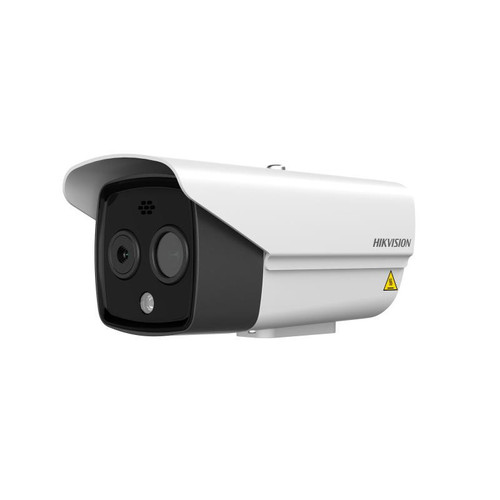

Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum Network Bullet Camera
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Support smoking detection algorithm
- Support sun-reflection filter algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
DatasheetSpecifications
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: 256 × 192
- Pixel Pitch: 12 μm
- Spectral Range: 8 μm to 14 μm
- NETD: < 40 mK (25°C, F1.0)
- Focal Length: 3.6 mm
- IFOV: 3.33 mrad
- Field of View: 50.0° × 37.3° (H × V)
- Min. Focusing Distance: 0.5 m
- Aperture: F1.0
- Digital Zoom: ×2, ×4
Optical Module
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Resolution: 2688 × 1520
- Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed: 1 s to 1/100,000 s
- Focal Length: 4.3 mm
- Field of View: 84.0° × 43.1° (H × V)
- Aperture (Range): F1.6
- Shutter Speed: 1 s to 1/100,000 s
- WDR: 120 dB
General
- Power Supply;
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
- Power Consumption;
24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity;
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level;
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions: 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- Weight: 1550 g (3.41 lb)
Detection Range Table/Smart Function Range
- VCA Range for Humans: 24 m
- VCA Range for Vehicles: 72 m
