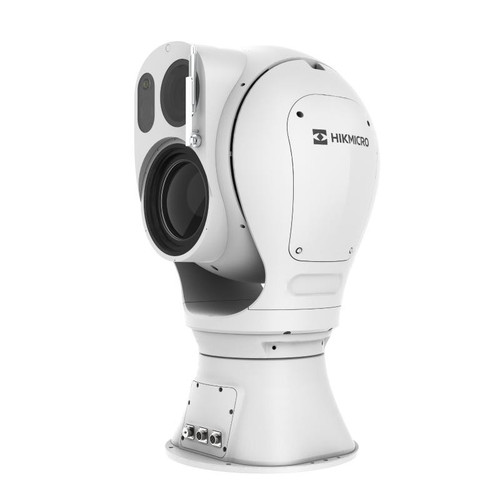

Hikvision HM-TD95C8-300ZK4FL/W Thermal & Optical Bi-spectrum Network Sphere Positioning System
- Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- 1280 × 1024 resolution 12 μm, VOx UFPA, NETD ≤ 25 mK (25 °C, F# = 1.0)
- Fire detection and smoke detection algorithm
- Smart wiper, automatically turns on when it rains
- High quality detector with 10 years guarantee
- NEMA-4X Standard, Anti-corrosion coating
DatasheetSpecifications
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 1280 × 1024
- Pixel Pitch: 12 μm
- Spectral Range: 8 μm to 14 μm
- NETD: ≤ 25 mK (@ 25 °C,F# = 1.0)
- Focal Length: 30 to 300 mm
- Focus Mode: Semi-auto & Manual
- IFOV: 0.4 to 0.04 mrad
- Field of View: 28.7° × 23.2° (H × V) to 2.9° × 2.4° (H × V)
- Min. Focusing Distance: 3 m
- Aperture: F0.85 to F1.35
- Digital Zoom: x2, x4, x8
Optical Module
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Resolution: 2688 × 1520, 4 MP
- Min. Illumination: Color: 0.005 Lux @ (F3.5, AGC ON), B/W: 0.0005 Lux @ (F3.5, AGC ON)
- Shutter Speed: 1 s to 1/100,000 s
- Focal Length: 10 to 1000 mm, 100x
- Field of View: 31.2° × 17.8° (H × V) to 0.41° × 0.23° (H × V)
- Aperture (Range): F3.0 to F11.5
- Focus Mode: Semi-auto & Manual
- Shutter Speed: 1 s to 1/30,000 s
- WDR: 120 dB
- Digital Zoom: x2, x4, x8, x16
- Optical Defog: Yes
General
- Power Supply: 48 VDC ± 20%, 4-pin Aviation Connector
- Power Consumption: 180 W; Max. 460 W with deicing heating
- Work Temperature/Humidity: From -40°C to 70°C (-40°F to 158°F); Humidity: 90% ± 3% (no condensation)
- Wiper: Manual & Scheduled & Smart Wiper
- Protection Level: IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension: 578.3 mm × 571 mm × 955.7 mm (22.8 " × 22.5 " × 37.6 ")
- Weight: Approx. 100kg (220.5 lb)
Detection Range Table/Smart Function Range
- VCA Range for Humans: 2100 m
- VCA Range for Vehicles: 6300 m
