Zebra DS9908-SR. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-485. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Input voltage: 5 V. Weight: 330 g, Width: 94 mm, Depth: 132 mm
IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LAB
Barcodes found in the lab can be challenging for a general purpose scanner. That’s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.
SCAN IT ALL
High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.
TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.
UNRIVALED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
Specifications
| General | |
|---|---|
| Brand | Zebra |
| Manufacturer part number | DS9908-SR4R0110AZW |
| HSSL part number | UK-ZEB-DS9908-SR4R0110AZW |
| Product type | Barcode Readers |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Wavelength | 528 nm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-485 |
| Performance | |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Built-in display | No |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Product colour | Black |
| Power | |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 132 mm |
| Height | 203 mm |
| Weight | 330 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ZEB-DS9908-SR4R0110AZW.
Additional information

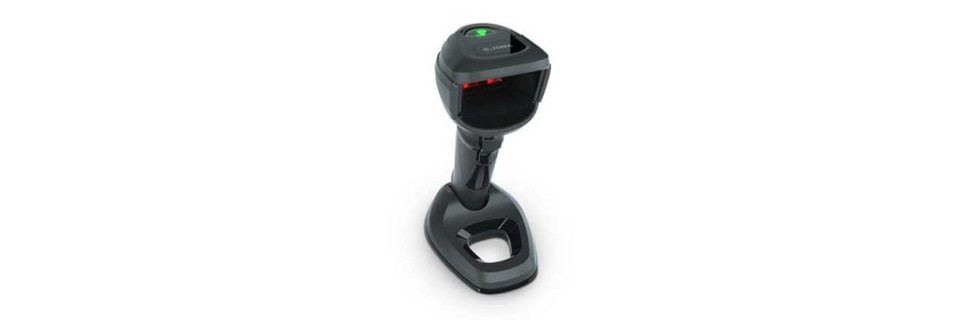

Zebra Symbol DS9908 Handheld Barcode Scanner Kit - 1D, 2D - Imager - Black - DS9908-SR4R0110AZW
Boost your productivity and accuracy with the Zebra Symbol DS9908 handheld barcode scanner kit. This versatile device is designed to capture 1D and 2D barcodes with exceptional speed and efficiency, streamlining your workflow and minimizing errors. Whether you're in retail, healthcare, warehousing, or manufacturing, the DS9908 delivers reliable performance in demanding environments.
Unrivaled Scanning Power: The DS9908 excels at capturing barcodes from various sources, including printed labels, mobile screens, and even damaged or poorly printed codes. Its advanced imaging technology ensures quick and accurate data capture, reducing processing time and enhancing customer satisfaction.
Durable and Reliable: Built to withstand the rigors of daily use, the DS9908 boasts a rugged design that can handle drops, bumps, and exposure to dust and moisture. This durability ensures long-lasting performance, minimizing downtime and maximizing your return on investment.
Ergonomic Design for User Comfort: The DS9908 is designed with user comfort in mind. Its lightweight and ergonomic form factor reduces hand fatigue during extended use, promoting operator productivity and well-being.
Easy Integration and Setup: The DS9908 seamlessly integrates with your existing systems, simplifying deployment and minimizing disruption to your operations. The kit includes everything you need for a quick and hassle-free setup.
Key Features:
- 1D and 2D Barcode Scanning: Captures a wide range of barcode symbologies.
- Advanced Imaging Technology: Ensures fast and accurate data capture, even on damaged codes.
- Rugged Design: Withstands drops, bumps, and harsh environments.
- Ergonomic Form Factor: Reduces user fatigue during extended use.
- Easy Integration: Seamlessly integrates with existing systems.
- Complete Kit: Includes everything needed for quick setup.
- Color: Black
