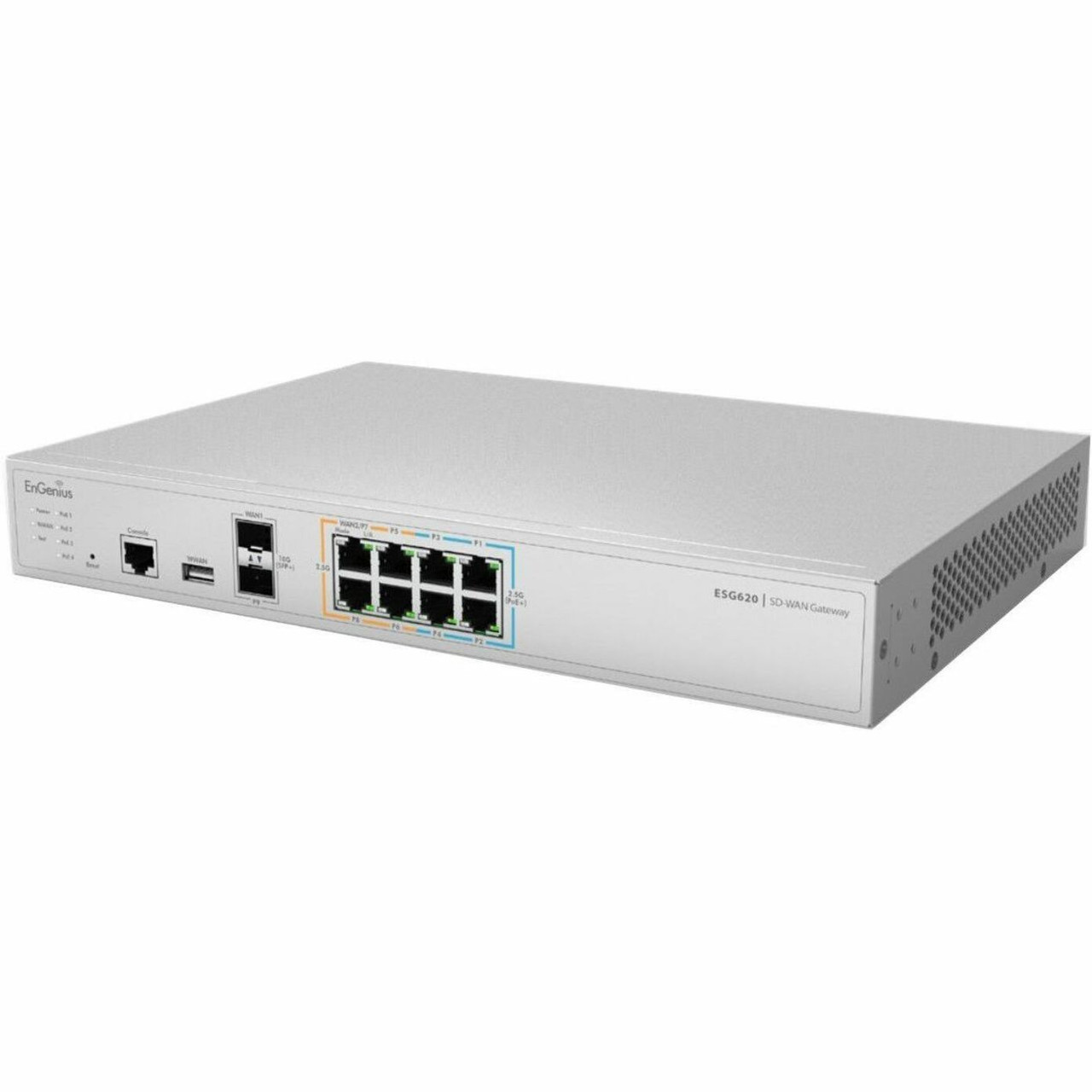

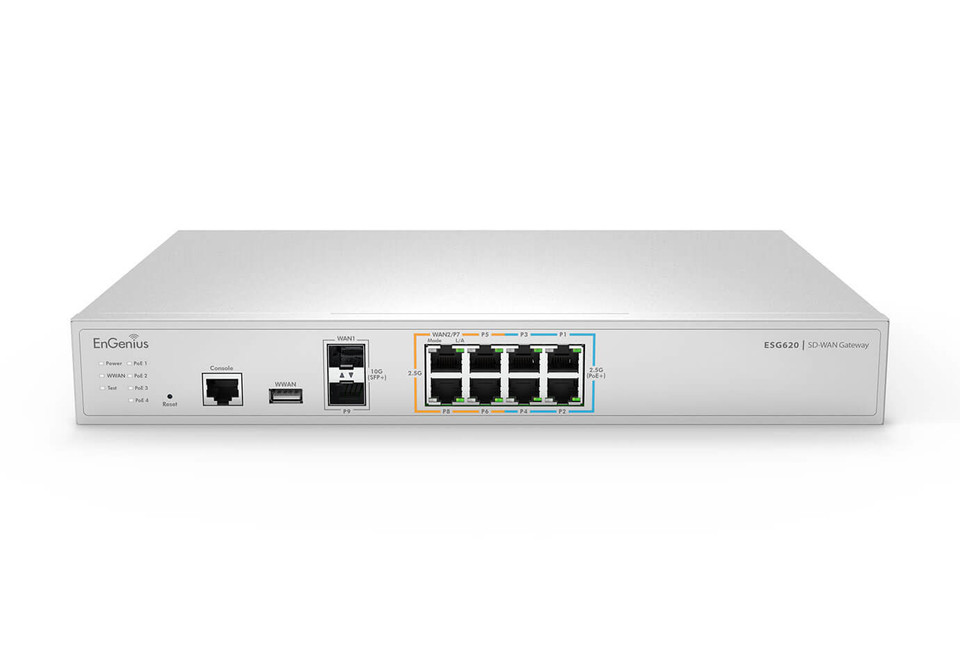

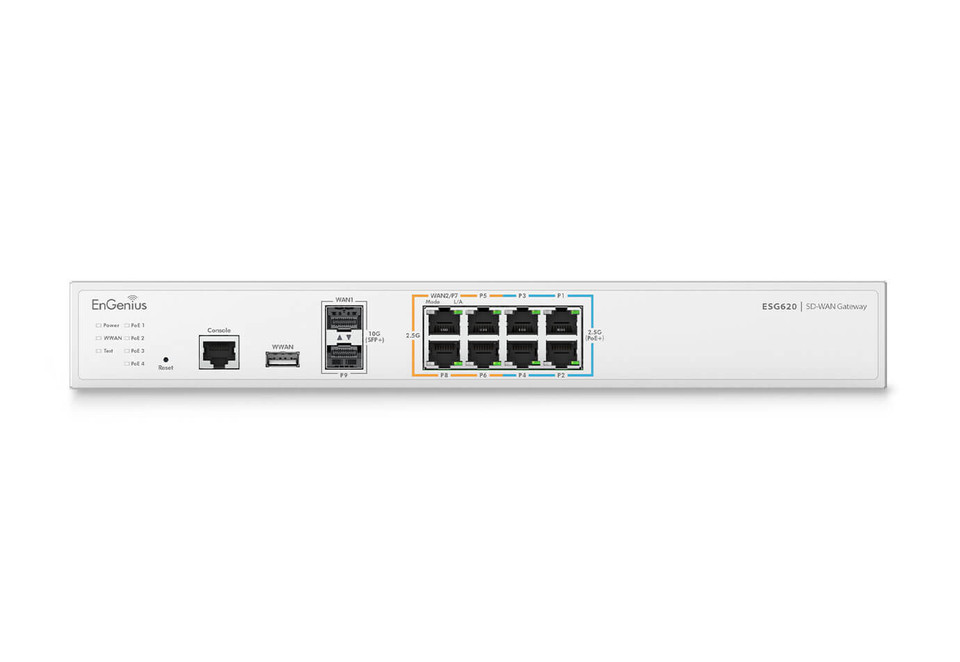

EnGenius Cloud Managed Security Gateway 2 x 2.5 GbE LAN & 6 x 2.5 GbE WAN & 2 SFP+ ports. Product colour: White. Processor frequency: 2200 MHz, Internal memory: 8192 MB. Ethernet LAN data rates: 2500 Mbit/s, Firewall throughput: 7700 Mbit/s, SSL VPN throughput: 1.5 Gbit/s. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, Authentication method: MD5, SHA1, SHA2 (256-bit). Console port: RJ-45
EnGenius ESG620 SD-WAN gateway provides a high-performance network solution with advanced features, including load balancing, dual-WAN, and site-to-site VPN. The product offers unified management through EnGenius Cloud, allowing for easy configuration and management from anywhere. It offers a comprehensive end-to-end solutionfor businesses seeking to enhance their network performance and security.
Documents
Specifications
| General | |
|---|---|
| Brand | EnGenius |
| Manufacturer part number | ESG620 |
| HSSL part number | UK-ENG-ESG620 |
| UPC / GTIN | 0655216010789 |
| Product type | Gateways/Controllers |
| Design | |
| Product colour | White |
| LED indicators | Yes |
| Performance | |
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Internal memory | 8192 MB |
| Network | |
| Ethernet LAN data rates | 2500 Mbit/s |
| Number of concurrent sessions (max) | 1250000 |
| Firewall throughput | 7700 Mbit/s |
| SSL VPN throughput | 1.5 Gbit/s |
| VPN support | Site-to-Site VPN Client VPN(IPsec/SecuPoint SSL) Policy-based VPN IPSec NAT traversal (NAT-T) Dead Peer Detection (DPD) Auto-VPN Connection Auto NAT traversal |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES |
| Firewall security | Yes |
| Authentication method | MD5, SHA1, SHA2 (256-bit) |
| VLAN support | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Console port | RJ-45 |
| Power | |
| Power supply | 300 W |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ENG-ESG620.
Additional information
EnGenius ESG620 Router - 8 Ports - 7 RJ-45 Port(s) - 1 WAN Port(s) - PoE Ports - Management Port - 2 SFP+ Slots - 8 GB - 10 Gigabit Ethernet - IEEE 802.3af, IEEE 802.3at - Rack-mountableWe can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be ship to international destinations.
